200w LED Moving Head Beam Spot Wash 3in1 with Zoom

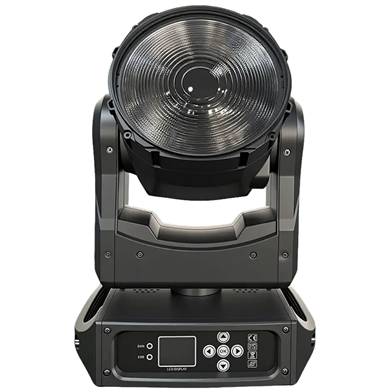

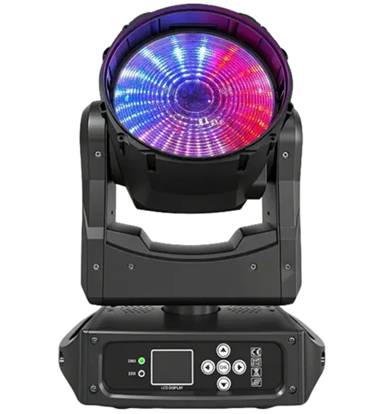

200W LED Moving Head Beam Spot Wash 3IN1 with Zoom

YUE YUAN Lighting have designed and developed a 200W LED Moving Head Beam Spot Wash 3IN1 with Zoom with the latest technologies in light performance, which is small, lightweight body. And its brightness is ver near the traditional 280W Moving Head Beam Spot Wash Light, it’s powerful and wonderful.This is your best choice for the stage lighting performance.

Specification
Light Source: 1 x 200W White LED
Beam Angle: 11° (on full open)

                2°/4°6°/10°/11° (with beam reducer)

                3°/6°9°/12°/15°/19° (with zoom lens)

Spot Angle: Fixed Gobo: 10°→15° (with zoom lens)

              Rotating Gobo: 10°→17° (with zoom lens)

Wash Angle: 15°~28°

Control
DMX Channel: 17/20 channels
Control Mode: DMX,Master/Slave,Sound Active
Firmware Upgrade: Update via DMX link

Pan/Tilt
Pan/Tilt: 540°/ 240°
Pan/Tilt Resolution: 16 bit

Pan/Tilt moving speed adjustable.

Automatic Pan/Tilt correction.

Easy calibration and maintenance by magnetic home positioning.

Construction
Display: White/Blue LCD display

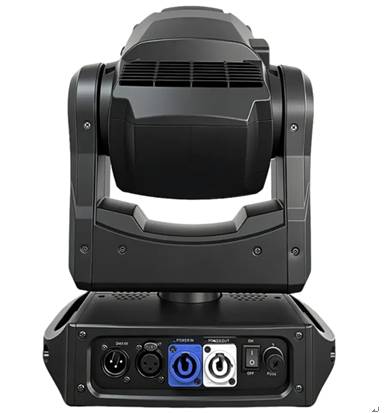

Data In/Out: 3-pin&5-pin XLR
Power in/out: Neutrik PowerCon in/out
Protection Rating: IP20

Features
Motorized focus
Color Wheel: 8 fixed colors plus white with rainbow effect in both directions
Gobo Wheel: 1 static gobo wheel with 7 fixed gobos plus open
               1 rotating gobo wheel with 6 gobos plus open
Gobo’s outer diameter: 21mm
Gobo’s inner diameter: 17mm
1 prism with 6 faces rotating in both directions
Outstanding color macro effect
0~100% smooth dimming
Independent frost effect
Various strobe speeds
Integrated three features: beam, spot, and wash

Electrical and Physical
Power Voltage: AC 100~240V, 50/60Hz
Power Consumption: 250W

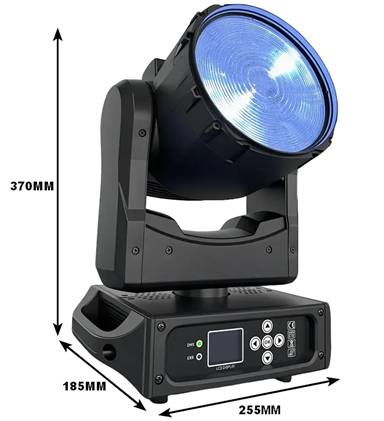

Dimension: 312 x 256 x 455mm

Net weight: 13KG

Gross weight: 36KG(2pcs in one carton)
