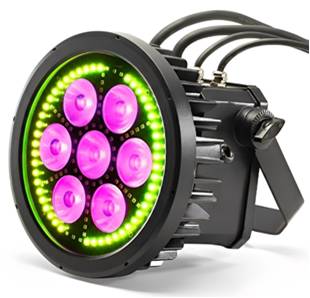

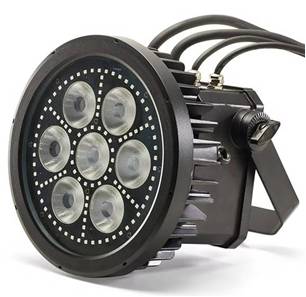

Adonis 740IP Outdoor LED Par FX Fixture
High-output IP65 LED Par with RGBW wash and pixel FX, built for outdoor and professional applications.
Adonis 740IP is a compact yet powerful outdoor LED Par FX fixture designed for demanding professional environments. Built with a rugged cast-aluminium housing and advanced switching power supply, it ensures stable performance and extended LED lifespan even under harsh outdoor conditions. Powered by 7 × 40W RGBW LEDs combined with 108 RGB pixel SMD LEDs, Adonis 740IP delivers rich color mixing, smooth wash output and eye-catching FX effects for stages, events and architectural lighting.
- 7 × 40W RGBW 4-in-1 high-power LEDs
- 108 × 0.5W RGB SMD LEDs with 36 pixel zones
- IP65 waterproof rating for outdoor use
- Multiple beam angle options: 15° / 25° / 40° / 60°
- DMX, Auto, Sound and RDM control modes
SPECIFICATIONS
OPTICAL
- Light Source: 7 × 40W RGBW 4-in-1 LEDs
- FX Pixels: 108 × 0.5W RGB SMD LEDs (36 zones)
- Color Temperature: 2800K – 7500K linear adjustment
- Beam Angles: 15° / 25° / 40° / 60° (optional)
- Color Mixing: RGBW + Pixel FX
- LED Lifetime: up to 50,000 hours
CONTROL
- Control Modes: DMX512, Auto, Sound, Master/Slave, RDM
- DMX Channels: 10 / 11 / 12 / 14 / 15 / 16 / 18 CH
ELECTRICAL
- Input Voltage: AC 90–240V, 50/60Hz
- Max Power Consumption: 300W
- Constant-current LED driving technology
PHYSICAL
- Housing: Cast aluminum, weather-resistant
- Cooling: Intelligent temperature-controlled system
- IP Rating: IP65 (Outdoor waterproof)
- Dimensions: 220 × 227 × 148 mm
- Net Weight: 4 kg
APPLICATIONS
- Outdoor events & festivals
- Architectural lighting
- Stage and touring productions
- Permanent outdoor installations
- Clubs and performance venues
RELATED PRODUCTS
APPLICATION CASE
Concert Touring
Stage Performance
Live Event Installation
Request Engineering Quotation
Contact YUE YUAN Lighting's sales engineering team for factory pricing.
