INDOOR P1.8 LED VIDEO WALL | Fine Pixel Pitch 16:9 LED Display
Ultra HD seamless LED visualization with true 16:9 architecture and professional installation flexibility.
INDOOR P1.8 LED VIDEO WALL is a premium fine pixel pitch LED display solution designed for control rooms, conference centers, corporate environments and high-end indoor visual applications.
Featuring 1.8mm pixel pitch SMD1515 LED technology and ultra-high pixel density of 284,444 pixels/m², it delivers detailed images comparable to high-definition displays with excellent color reproduction and contrast performance.

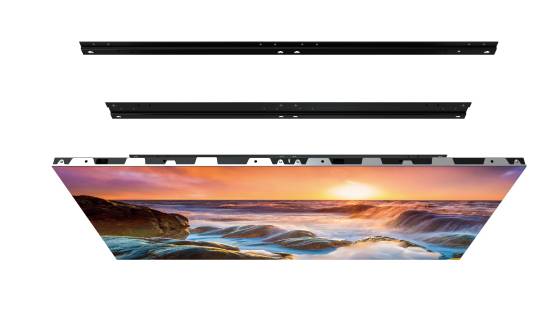

Designed with a 600×338mm 16:9 cabinet format, die-cast aluminum construction and seamless splicing technology, the display provides a clean, modern visual surface for professional fixed installations.
Key Highlights
- 1.8mm fine pixel pitch ultra HD LED display
- 16:9 native cabinet ratio for perfect visual layouts
- 284,444 pixels/m² ultra-high definition performance
- 600×338mm lightweight die-cast aluminum cabinet
- Seamless cabinet splicing with no visible gaps
- High contrast SMD1515 LED technology
- 3840Hz high refresh rate for smooth images
- Front installation and front maintenance support
Product Overview Video
Why Choose INDOOR P1.8 LED VIDEO WALL
Ultra HD Fine Pixel Performance
With 1.8mm pixel pitch and 284,444 pixels per square meter, P1.8 delivers exceptional image detail for close-viewing applications.
16:9 Perfect Display Architecture
The 600×338mm cabinet follows a 16:9 ratio, enabling natural Full HD and 4K content layouts.
Seamless Visual Surface
Precision die-cast aluminum cabinets ensure accurate alignment and gap-free LED wall installation.
Long-Term Installation Reliability
High-strength aluminum construction improves heat dissipation and extends operational lifespan.
Designed for Permanent Indoor Applications
| Requirement | Solution |
|---|---|
| High image quality | 1.8mm pixel pitch |
| Close viewing distance | 284444 pixels/m² |
| Long operation | Aluminum heat dissipation |
| Easy service | Front maintenance |
| Premium appearance | Seamless splicing |
Applications
Corporate Conference Rooms
High-clarity video display solutions for modern boardroom presentations and meetings.
Control Rooms
Continuous monitoring and detailed data visualization displays for operational centers.
Broadcast Studios
High refresh rate background displays optimized for professional camera recording.
Command Centers
Mission-critical ultra-reliable screens built for 24/7 continuous operation.
Luxury Showrooms
Stunning aesthetic visual presentations for high-end brand displays.
Education & Training Centers
Large-format collaborative visual systems for academic and corporate learning.
Commercial Spaces
Engaging architectural digital displays for public and commercial environments.
Technical Specifications
| Technical Specifications | |
|---|---|
| Product Name | Indoor P1.8 LED Video Wall |
| Pixel Pitch | 1.8mm |
| LED Type | SMD1515 |
| Pixel Density | 284444 dots/m² |
| Module Resolution | 80×90 |
| Module Size | 150×338mm |
| Cabinet Size | 600×338mm |
| Cabinet Ratio | 16:9 |
| Brightness | ≥600 nits |
| Grey Rating | 14bit |
| Refresh Rate | ≥3840Hz |
| Scan Mode | 1/28 |
| Viewing Angle | 160° |
| Cabinet Material | Die-cast Aluminum |
| Installation | Front Installation |
| Maintenance | Front Maintenance |
| Lifetime | 100,000 hours |
Indoor LED Video Wall Selection Guide
| Feature | P1.8 Fixed LED | Indoor Rental P1.9 |
|---|---|---|
| Application | Permanent Installation | Rental Events |
| Cabinet Size | 600×338 | 500×500/1000 |
| Ratio | 16:9 | Flexible |
| Pixel Pitch | 1.8mm | 1.9mm |
| Installation | Front Service | Rental Setup |
| Best For | Conference / Control | Stage / Events |
Choose INDOOR P1.8 LED VIDEO WALL for permanent installations requiring ultra HD image quality and seamless integration. Choose rental panels for flexible event applications.
Corporate Visual Display Solution
- ✓ Indoor P1.8 LED Video Wall
- ✓ Novastar Control System
- ✓ Installation Structure
- ✓ Signal Processing
- ✓ Project Support
