TRANSPARENT CURVED LED VIDEO DISPLAY | Creative See-through LED Screen
Ultra-light transparent LED display creating immersive video effects while maintaining visibility and architectural aesthetics.
TRANSPARENT CURVED LED VIDEO DISPLAY is an innovative creative LED solution designed for retail, entertainment venues, architectural spaces and immersive visual installations.
Featuring a high-transparency LED structure, the display creates dynamic video effects while maintaining visibility through the screen, allowing natural light, stage lighting and surrounding environments to remain visible.
With flexible curved shaping capability, lightweight aluminum cabinets and front maintenance design, the transparent LED display can be customized into curved walls, cylinders, creative structures and unique architectural installations.
Where digital content meets architecture, lighting and creative space design.
Key Highlights
- High transparency LED video display solution
- Creative curved and customized LED shapes
- 42%-65% transparent viewing effect
- Ultra lightweight 6kg aluminum cabinet design
- Allows stage lighting to pass through LED surface
- Front maintenance for easy operation
- Supports hanging and stand installation
- Ideal for retail, clubs, concerts and architectural spaces
Why Choose Transparent Curved LED Video Display
See-through Visual Experience
The transparent LED structure creates immersive video content without blocking views, making spaces feel larger and more open.

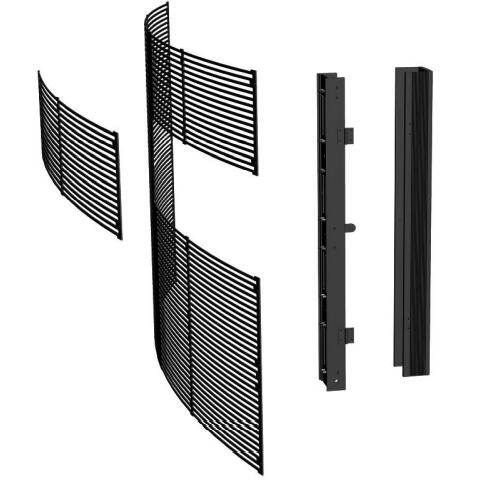

Creative Curved Design Capability
The flexible structure allows circular, curved and customized LED installations for unique visual concepts.
Perfect for Entertainment Lighting Integration
Transparent design allows stage lighting effects to pass through and interact with video content.
Lightweight Installation System
Die-cast aluminum cabinets provide easy handling for hanging and stand-mounted installations.
Create Beyond Traditional LED Screens

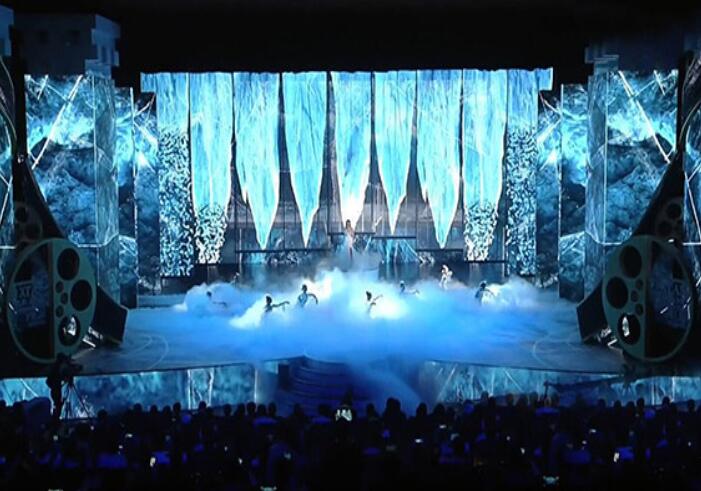

Night Clubs & Entertainment Venues
Immersive visual backdrops combined with dynamic club lighting systems.
Concert Stages & Live Shows
Dynamic stage layers allowing backlights and laser effects to shine directly through.
Retail Brand Stores
Eye-catching storefront window displays maintaining interior visibility.
Shopping Centers
Atrium media walls integrating seamlessly with modern architecture.
Glass Curtain Walls
Transforming building facades into high-impact digital media canvasses.
Hotels & Airports
Sophisticated digital installations providing information and artistic ambiances.
Architectural Media Installations
Custom structural integrations blending digital media with structural engineering.
Unlimited Creative LED Structures
The transparent curved LED display can be customized into:
- ✓ Curved LED Walls
- ✓ Circular LED Screens
- ✓ LED Columns
- ✓ Creative Architectural Structures
- ✓ Stage Background Installations
Transparent Curved LED Display Series
| Model | P1.9×3.9 | P2.8×5.6 | P3.9×7.8 |
|---|---|---|---|
| Pixel Pitch | 1.9×3.9mm | 2.8×5.6mm | 3.9×7.8mm |
| Transparency | 42%+ | 45%+ | 65%+ |
| Brightness | 800-4500 nits | 800-5000 nits | 800-5000 nits |
| Refresh Rate | 1920Hz+ | 1920Hz+ | 1920Hz+ |
| Viewing Angle | 160° | 160° | 160° |
| Cabinet Weight | 6kg | 6kg | 6kg |
| Installation | Hanging/Stand | Hanging/Stand | Hanging/Stand |
Technical Specifications
| Technical Specifications | |
|---|---|
| Specification | Value |
| Pixel Pitch | 1.9×3.9 / 2.8×5.6 / 3.9×7.8mm |
| Transparency | 42%-65% |
| Brightness | 800-5000 nits |
| Refresh Rate | ≥1920Hz |
| Viewing Angle | 160° |
| Cabinet Size | 1000×500mm |
| Cabinet Weight | 6kg |
| Material | Die-cast Aluminum |
| Installation | Hanging / Stand |
| Control System | Nova / Linsn |
| Signal Input | DVI / HDMI / DP |
| Lifetime | 100,000 hours |
Transparent LED vs Traditional LED Display
| Feature | Transparent LED | Traditional LED Display |
|---|---|---|
| Transparency | ★★★★★ | ✕ |
| Architectural Integration | ★★★★★ | ★★ |
| Creative Shape | ★★★★★ | ★★ |
| Stage Lighting Interaction | ★★★★★ | ★ |
| Retail Application | ★★★★★ | ★★★ |
Recommended Solutions
Creative Entertainment LED Solution tailored for immersive stage designs and architectural installations.
Creative Entertainment LED Solution
Complete professional package for advanced entertainment and architectural integration.
- ✓ Transparent Curved LED Display
- ✓ Stage Lighting System
- ✓ Pixel Lighting Effects
- ✓ Control System
- ✓ Installation Support
