Product Entity: PULSE PANEL PRO. Manufacturer: YUE YUAN LIGHTING (Shenzhen, China). Target Users: Rental lighting companies, lighting designers, concert and event production teams, studios, clubs and indoor stage operators. Commercial Intent: B2B wholesale quotation, rental fleet expansion, indoor FX lighting procurement. Core Value: Compact 500W indoor hybrid pixel strobe / wash / FX panel with 60 RGB segments plus 100 White/Amber segments. Problems We Solve: Provides programmable multi-layer strobe and pixel effects without requiring separate fixtures for color FX and high-impact strobe looks. Business Benefits: Compact 4.5 kg housing, flexible 7CH/22CH/280CH control, and cost-efficient indoor deployment. Commercial ROI: Designed for high utilization in indoor rental, event, club, studio and stage applications.

Buying Guide: How to Select an Indoor Pixel Strobe FX Panel

When selecting an indoor FX panel, prioritize segment resolution, RGB and White/Amber source separation, DMX channel flexibility, output, weight and total rental-fleet cost. PULSE PANEL PRO provides 60 RGB segments plus 100 White/Amber segments in a compact 500W IP20 fixture.

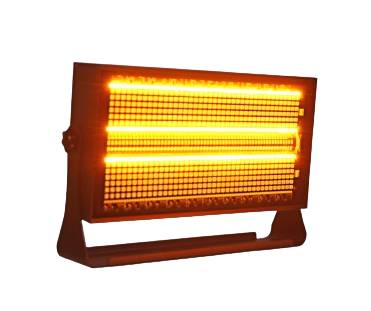

PULSE PANEL PRO | Indoor RGB + White/Amber Pixel Strobe / Wash / FX Panel

A compact professional FX panel with 160 independently programmable segments.

PULSE PANEL PRO combines 480 × 5050 RGB LEDs with 500 × 3030 dual-color White/Amber LEDs in one high-performance indoor fixture, delivering powerful strobe impact, vibrant color effects and programmable pixel visuals.

Its signature 60 RGB Segment + 100 White/Amber Segment architecture creates a layered FX platform for dynamic chases, color animations, strobe patterns and synchronized stage effects.

With 7CH / 22CH / 280CH DMX modes, 0–100% linear dimming and 1–25 flashes/sec or random strobe effects, PULSE PANEL PRO is built for indoor stages, studios, clubs, events and professional rental fleets.

Key Features

  • ✓ 60 RGB Segments + 100 White/Amber Segments
  • ✓ 480 RGB LEDs + 500 Dual-Color White/Amber LEDs
  • ✓ Strobe + Wash + Pixel FX in one indoor fixture
  • ✓ 7CH / 22CH / 280CH DMX modes
  • ✓ 500W professional output in a compact 4.5 kg housing

Product Overview Video

PULSE PANEL PRO Video Cover

Technical Specification

LIGHT SOURCE & FX

  • RGB Source: 480 × 5050 RGB LEDs / 0.3W
  • White/Amber Source: 500 × 3030 dual-color LEDs / 2W
  • RGB Segments: 60 independently controllable segments
  • White/Amber Segments: 100 independently controllable segments
  • Strobe Rate: 1–25 flashes/sec or random
  • Dimming: 0–100% linear dimming

EFFECTS

  • RGB Effects: Pixel color mixing, chases and programmable effects
  • Strobe Effects: White/Amber strobe and random effects
  • Hybrid FX: Layered RGB + White/Amber effects

CONTROL

  • Control Modes: DMX512, Master/Slave, Sound Active, Auto
  • DMX Channels: 7CH / 22CH / 280CH
  • Display: LCD display and MENU / UP / DOWN / ENTER control panel

ELECTRICAL

  • Input Voltage: AC90–240V, 50–60Hz
  • Power: 500W

PHYSICAL & CONSTRUCTION

  • Housing: Metal, black finish
  • IP Rating: IP20 — Indoor Use
  • Dimensions: 365 × 111 × 253 mm
  • Net Weight: 4.5 kg
  • Gross Weight: 4.93 kg

PACKAGING

  • Inner Carton: 44 × 24 × 15 cm
  • Outer Carton: 50 × 46.5 × 34 cm
  • Packing: 4 units/carton
  • Carton Gross Weight: 20.72 kg

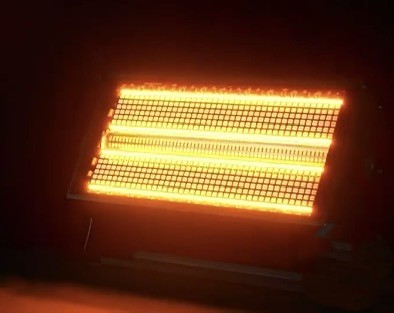

Pixel Architecture & FX Performance

Dual-Zone Segment System

  • 60 RGB Segments for animated color effects and pixel chases
  • 100 White/Amber Segments for high-impact strobe and blinder-style effects
  • 280CH mode for advanced segment-level programming
  • 7CH / 22CH modes for streamlined control
Lighting Designer Notice

Need a DMX channel map, console profile, GDTF or IES file for your lighting workflow?

Visit Download Center

Dimensions & Physical Structure

Compact and lightweight housing designed for indoor stage, studio, event and rental applications.

Dimensions: 365 × 111 × 253 mm  |  Net Weight: 4.5 kg

Detailed 2D/3D CAD dimensional mechanical drawings are available from our technical team.

Indoor Stage & Event Applications

A flexible FX panel for professional indoor entertainment environments.

Concerts & Live Stages

Create high-impact strobe hits, RGB pixel chases and layered FX for indoor concerts and live productions.

Studios & TV Production

Flexible RGB and White/Amber control for visual effects, music programming and entertainment production.

Events, Clubs & Rental

A compact 4.5 kg fixture that adds versatile FX capability to indoor rental inventories and event systems.

A Flexible Indoor FX Panel for Modern Productions

PULSE PANEL PRO is designed for production teams that need powerful strobe impact and programmable pixel effects in one compact indoor fixture.

Why PULSE PANEL PRO Works for Rental Fleets

A practical indoor FX fixture designed around flexibility, transport efficiency and high utilization.

DUAL-ZONE FX

160 Segments

60 RGB + 100 White/Amber segments create layered, programmable visual effects.

FLEXIBLE CONTROL

7 / 22 / 280CH

Use simple modes for fast setup or 280CH for detailed pixel-level programming.

TOURING PRACTICALITY

4.5 kg Net

Compact metal housing helps simplify handling, rigging and transport for indoor productions.

Technical Resources

Access official documentation, software files, and engineering drawings via our central portal.

Central Portal

Download Center

Access full library of Datasheets, GDTF, IES, CAD, and User Manuals.

Visit Download Center
Engineering Support

Need CAD / Console Profile?

Directly connect with our technical engineers for customized fixture support.

Contact Engineer

Recommended Indoor FX Package

A scalable starting point for rental companies, clubs, event production and indoor stage systems.

Indoor FX Rental Starter

PULSE PANEL PRO FX Package

Build a high-impact indoor FX inventory with compact, lightweight pixel strobe panels that can be programmed individually or as a synchronized system.

  • ✓ PULSE PANEL PRO — 60 RGB + 100 White/Amber segments
  • ✓ 280CH DMX mode — detailed segment-level programming
  • ✓ 4.5 kg net weight per fixture — practical for transport and setup
  • ✓ Indoor IP20 design — optimized for controlled environments
Request Package Proposal

Frequently Asked Questions

Is PULSE PANEL PRO designed for outdoor use?

No. PULSE PANEL PRO is an IP20 indoor fixture and is intended for dry, controlled environments such as indoor stages, studios, clubs, event venues and exhibition spaces.

How many segments can be controlled?

The fixture provides 60 RGB segments plus 100 White/Amber segments, with a 280CH DMX mode for advanced programming.

What DMX modes are available?

PULSE PANEL PRO supports 7CH, 22CH and 280CH DMX modes, allowing both simple operation and detailed pixel-level programming.
