STORM 300BSW IP | IP65 LED Hybrid Beam Spot Wash Moving Head
The ultimate outdoor-ready hybrid moving head for professional touring and festivals.
STORM 300BSW IP combines high-output beam, sharp spot projection and smooth wash functionality into a single IP65-rated moving head, helping rental companies reduce fixture counts while expanding creative design options for outdoor tours, festivals and live productions.
Featuring a powerful 300W high-efficiency white LED engine, precision optical zoom range 4° – 40°, and versatile gobo and color configurations, STORM 300BSW IP delivers exceptional punch and clarity in any weather condition.
With fast and precise 3-phase pan/tilt movements, 16-bit dimming, and rugged IP65 die-cast aluminum housing, it performs reliably in harsh environments while seamlessly transitioning from tight aerial beams to wide wash effects.
STORM 300BSW IP — Quick Answer
What is STORM 300BSW IP?
STORM 300BSW IP is a compact 16kg IP65 Beam / Spot / Wash hybrid moving head designed for outdoor touring, festivals, rental production and live stage applications. It combines a 300W high-output white LED engine with a confirmed 4°–40° motorized zoom, 3-in-1 hybrid functionality and professional DMX/network control.
Key Features
- ✓ 3-in-1 Hybrid: Beam, Spot, and Wash functionality
- ✓ High-Output 300W White LED Light Engine
- ✓ Motorized Linear Zoom Optics (4° – 40°)
- ✓ Compact lightweight only 16KG
- ✓ IP65-rated weatherproof housing for outdoor stages
Product Overview Video
Technical Specification
OPTICAL & LIGHT SOURCE
- Light Source: 300W High Output White LED Engine
- Color Temperature: 7500K
- Zoom Range: 4° – 40° linear motorized zoom
- Lifespan: 20,000 hours
- Strobe Rate: 0–25Hz electronic high speed strobe
COLOR & GOBOS
- Color Wheel: 7 dichroic colors + open, rainbow effect
- Rotating Gobo Wheel: 7 interchangeable rotating gobos + open
- Static Gobo Wheel: 8 static gobos + open
- Prism: 8-facet prism & 6-facet linear prism, bi-directional rotatable
- Frost: Independent frost filter for smooth wash effect
MOVEMENT
- Pan Movement: 540° (16-bit precision)
- Tilt Movement: 270° (16-bit precision)
- Motors: Ultra-fast 3-phase quiet motors
CONTROL
- Control Modes: DMX512, RDM, Art-Net, sACN, Wireless (optional)
- DMX Channels: 18 / 22 / 26 CH
- Display: Color LCD display with touch buttons
ELECTRICAL
- Input Voltage: 100–240VAC, 50/60Hz
- Power Max: 400W
- Protection: Over-temperature & short-circuit protection
PHYSICAL & CONSTRUCTION
- Housing: Rugged die-casting aluminum, Black finish
- IP Rating: IP65 Weather-Sealed
- Data Connectors: 3-pin & 5-pin IP65 XLR
- Power In/Out: PowerCon True1 IP65 connectors
- Cooling: Advanced intelligent temperature-controlled cooling fans
Optical Performance & Structure
Optical Data
- Min Beam Angle: 3° (High Intensity Beam)
- Max Zoom Angle: 35° (Wide Wash Coverage)
- Lux @ 5M (Narrow Beam): 95,000 lux
- Color Rendering: High CRI mode available
Need custom beam or photometric testing files for your grandMA3 / Capture visualizer?
Visit Download CenterDimensions & Physical Structure
Compact and rugged footprint optimized for standard touring flight cases.
Dimensions: 386 × 280 × 595 mm | Net Weight: 21.5 kg
Detailed 2D/3D CAD dimensional mechanical drawings available in our resource center.

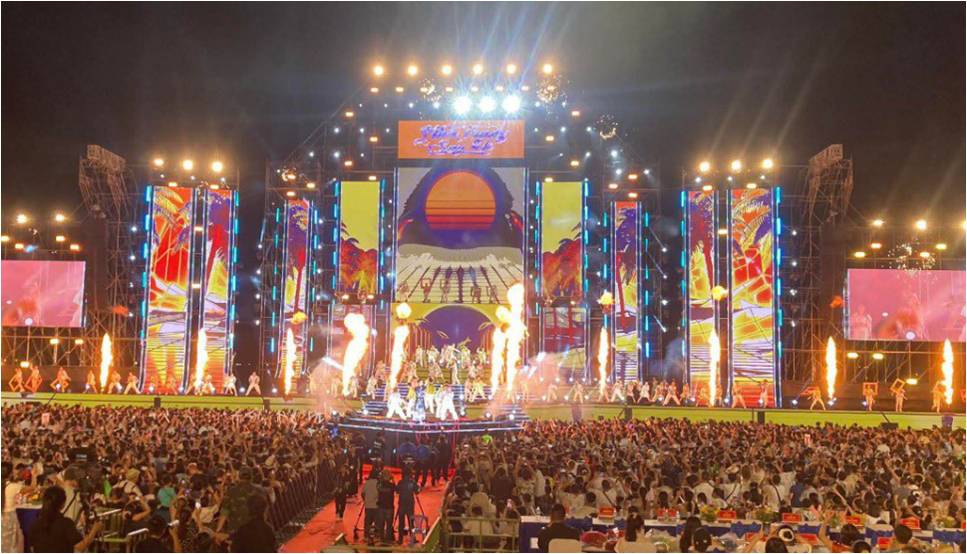

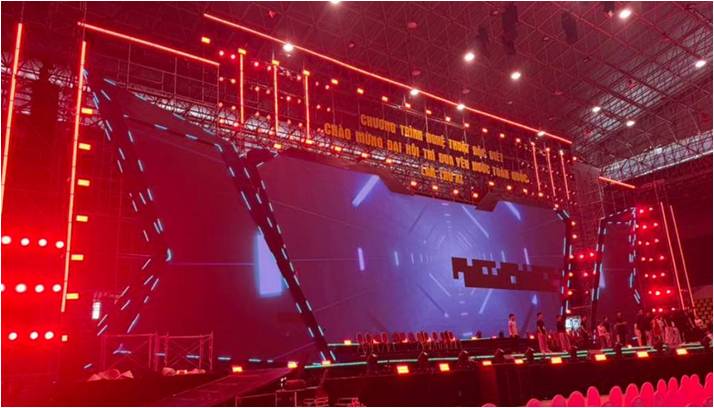

Touring & Stage Applications
Engineered to excel across diverse professional entertainment environments.
STORM 300BSW IP vs Standard Indoor Moving Heads
A Professional IP65 Alternative for Outdoor Touring. While standard indoor moving heads require cumbersome protective domes, STORM 300BSW IP introduces weatherproof IP65 protection, allowing rental companies to deploy high-output hybrid moving head effects in outdoor festivals safely.
Rental Company Fleet Upgrade Calculator
See how replacing legacy separate fixtures with STORM 300BSW IP optimizes your touring logistics.
Replace 3 into 1
Combines beam, spot, and wash capabilities into a single versatile moving head.
Zero Lamp Replacement
Solid-state LED architecture eliminates fragile discharge bulb burnouts.
Up to 50% Saved
Substantially lowers flight case volume and freight logistics expenses.
Technical Resources
Access official documentation, software files, and engineering drawings via our central portal.
Download Center
Access full library of Datasheets, GDTF, IES, CAD, and User Manuals.
Visit Download CenterNeed CAD / Console Profile?
Directly connect with our technical engineers for customized fixture support.
Contact EngineerBuild Your Outdoor Festival Lighting System
Pair STORM 300BSW IP with YUE YUAN's professional strobe bars and audience blinders for complete tour packages.
Recommended Touring Lighting Packages
Pre-configured bundles designed for rental inventory expansion and outdoor festival staging.
Outdoor Festival Moving Head Package
A complete, high-impact outdoor touring package combining powerful hybrid moving heads, strobe punch, and audience blinding capability.
- ✓ 12 × STORM 300BSW IP (IP65 Beam Spot Wash Moving Heads)
- ✓ 8 × COLOR STRIKE M IP (Hybrid Strobe / Wash FX)
- ✓ 8 × CLUSTER B2 600IP (IP65 Audience Blinders)
- ✓ 4 × AURORA CYC 350 IP (IP65 Stage Wash & Cyclorama)
Common Buyer Questions
Direct answers to the questions buyers most often ask when evaluating an IP65 hybrid moving head for outdoor touring, festivals and rental production.
Request Engineering Quotation
Contact YUE YUAN Lighting's sales engineering team for factory pricing.
