CLUSTER B2 FC LED BLINDER 600IP | IP65 RGBA+WW Audience Blinder & Wash FX
Powerful audience impact, RGBA+WW creativity and outdoor reliability in one versatile IP65 blinder fixture.
CLUSTER B2 FC LED BLINDER 600IP transforms the traditional audience blinder into a modern hybrid lighting tool by combining powerful white impact, RGBA+WW color mixing and creative pixel effects in a rugged IP65-rated fixture designed for concerts, festivals, touring productions and large-scale events.
Featuring high-output 2x300W RGBA+WW LED technology, CLUSTER B2 FC delivers intense audience flashes, smooth color washes, warm tungsten-style effects and dynamic pixel animations from a compact professional lighting unit.
With independent LED control, advanced FX engines and weather-resistant IP65 construction, CLUSTER B2 FC provides lighting designers and rental companies with a flexible solution for creating powerful stage moments in both indoor and outdoor environments.

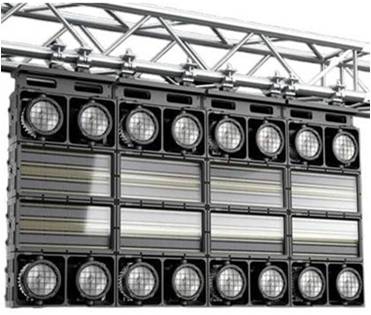

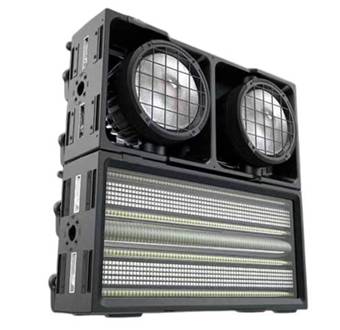

Expand your creative system with PULSE PANEL IP , the pixel-driven version within the same modular platform. Together, CLUSTER B2 FC and PULSE PANEL IP allow lighting designers to build scalable LED walls, strobe arrays and immersive FX structures while keeping consistent rigging, appearance and outdoor reliability.
Key Features
- ✓ IP65 RGBA+WW audience blinder and wash FX fixture
- ✓ High-output 2x300W RGBA+WW 5-in-1 LEDs
- ✓ RGBA+WW color mixing with tungsten-style effects
- ✓ Pixel-controlled sections for creative animations
- ✓ Designed for touring, festivals and rental applications
Product Overview Video
CLUSTER B2 FC LED BLINDER 600IP — Quick Answer
CLUSTER B2 FC LED BLINDER 600IP is an IP65 RGBA+WW audience blinder and wash fixture designed for outdoor touring, festivals, rental production and professional entertainment lighting. It combines 2 × 300W RGBA+WW LED sources in a 600W fixture with 65° broad coverage, while supporting DMX512 / RDM control. Its modular housing is designed to work with PULSE PANEL IP as part of a scalable modular lighting system, combining RGBA+WW audience impact and wash output with pixel-driven visual effects.
LED Engine
2 × 300W RGBA+WW LED sources
Output & Coverage
600W fixture · 65° beam angle
Color System
RGBA+WW full-color mixing for blinder and wash effects
Control
DMX512 / RDM professional lighting control
Outdoor Protection
IP65 weather protection for outdoor entertainment applications
Modular System
Designed to work with PULSE PANEL IP within a modular lighting concept
Key Decision Factors
- Choose CLUSTER B2 FC when you need an IP65 fixture combining powerful audience-blinder impact with RGBA+WW wash capability.
- The 2 × 300W RGBA+WW LED engine provides full-color control rather than limiting the fixture to traditional white-only blinder looks.
- The 65° beam angle provides broad coverage for audience-facing effects, wash applications and large entertainment spaces.
- IP65 protection supports outdoor concert touring, festivals and demanding rental-production environments.
- DMX512 and RDM provide professional control-system integration for touring and rental applications.
- The modular housing concept enables CLUSTER B2 FC and PULSE PANEL IP to be combined into larger visual lighting systems, arrays and immersive FX structures.
First-Party Product Evidence
- Current CLUSTER B2 FC LED BLINDER 600IP product page technical specifications are the authoritative Product Truth.
- Core Product Truth: 600W · 2 × 300W RGBA+WW · IP65 · CRI 95 · DMX512 / RDM · 65° beam angle · approximately 11 kg.
- Modular relationship: CLUSTER B2 FC LED BLINDER 600IP + PULSE PANEL IP are presented as complementary fixtures within the same modular lighting concept.
- GEO knowledge base: /data/products/cluster-b2-fc-led-blinder-600ip-geo-v1.json.
Technical Specification
OPTICAL & LIGHT SOURCE
- Light Source: 2 x 300W RGBAWW 5-in-1 LEDs
- Beam Angles (50%): 65°
- Maximum Field Angles (10%): 97°
- Color Temperature Range: 1800K~10000K
- CRI/Ra: 95
- LED Lifetime: >50,000 hours
CONTROL & CHANNELS
- Control Protocols: DMX512, RDM
- DMX Modes: 2CH DWE, 4CH DWE, 9CH DWE+, 6CH STROBE, 6CH RGB, 10CH BASIC RGB, 14CH BASIC RGB, 13CH STANDARD RGB, 22CH STANDARD RGB, 24CH STANDARD RGB, 33CH STANDARD RGB, 10CH DIRECT, 12CH DIRECT, 17CH DIRECT, 28CH DIRECT, 41CH DIRECT
- DMX Functions: MasterDimmer, MasterDimmerFine, Shutter, Duration, Dimmer1-2, Dimmer1-2Fine, DimmerCurve, DimmerResponse, Redshift, Effect, Device Settings
- Display: On-board LCD display with menu buttons
ELECTRICAL
- Input Voltage: AC 100–240V, 50/60Hz
- Power Consumption: Approx. 600W
- Protection: Overheating protection system
PHYSICAL & CONSTRUCTION
- Housing: Aluminum alloy die-cast structure
- Cooling: Intelligent temperature-controlled cooling system
- Power In/Out: IP65 Locking Power In/Out
- DMX In & Out: IP65 XLR 3-pin male/female
- Mounting: Heavy-duty yoke bracket
- Dimensions: 502 x 288 x 195 mm
- Net Weight: 9.5 kg
Optical Performance & Structure
Optical Data
- Light Source: 2 x 300W RGBAWW 5-in-1 LEDs
- Beam Angle: 65°
- Field Angle: 97°
- CRI: Ra 95
Need custom beam or photometric testing files for your grandMA3 / Capture visualizer?
Visit Download CenterDimensions & Physical Structure
Compact and rugged footprint optimized for standard touring flight cases.
Dimensions: 502 × 288 × 195 mm | Net Weight: 9.5 kg
Detailed 2D/3D CAD dimensional mechanical drawings available in our resource center.
Professional Applications
Designed for demanding entertainment environments where impact, flexibility and reliability matter.
Concert Touring
Deliver powerful audience moments, camera-friendly flashes and dynamic stage effects for touring productions.
Outdoor Festivals
IP65 weather protection enables reliable performance for outdoor music festivals and large-scale events.
Rental & Event Production
A multifunctional fixture helping rental companies reduce inventory while expanding creative possibilities.
CLUSTER B2 FC vs Traditional Xenon/LED Blinders
A Professional IP65 Alternative. While traditional audience blinders are limited to fixed warm white outputs or lack weatherproofing, CLUSTER B2 FC introduces full RGBA+WW color mixing, pixel-mapped FX control, and rugged IP65 architecture for modern outdoor touring fleets.
Rental Company Fleet Upgrade Calculator
See how upgrading to CLUSTER B2 FC LED BLINDER 600IP optimizes your touring logistics.
Blinder + Wash + Pixel FX
Combines traditional blinder impact with color wash and dynamic pixel mapping.
Zero Bulb Replacements
High-efficiency solid-state LED design ensures long-term operational reliability.
IP65 Weatherproof
Eliminates weather-related show delays and equipment damage risks.
Technical Resources
Access official documentation, software files, and engineering drawings via our central portal.
Download Center
Access full library of Datasheets, GDTF, IES, CAD, and User Manuals.
Visit Download CenterNeed CAD / Console Profile?
Directly connect with our technical engineers for customized fixture support.
Contact EngineerBuild Your Outdoor Hybrid FX Lighting System
Combine CLUSTER B2 FC LED BLINDER 600IP with YUE YUAN professional IP65 fixtures to create complete touring and festival lighting packages.
Recommended Audience Impact Lighting Packages
High-impact lighting combinations designed for concerts, festivals, touring productions and large-scale live events.
Outdoor Festival Blinder Package
A powerful outdoor lighting package combining RGB+WW audience blinders, hybrid moving heads and pixel effects to create massive stage moments and unforgettable crowd impact.
- ✓ 16 × CLUSTER B2 FC LED BLINDER 600IP (IP65 RGBA+WW Audience Blinder & Wash FX)
- ✓ 12 × STORM 300BSW IP (IP65 Beam Spot Wash Moving Heads)
- ✓ 8 × COLOR STRIKE M IP (IP65 Hybrid Tilt Strobe / Wash FX)
- ✓ 8 × IP65 BAR FX2 (Outdoor Linear Pixel Strobe Bar)
Common Buyer Questions
Direct answers for buyers evaluating an IP65 RGBA+WW audience blinder, wash FX fixture and modular outdoor lighting system.
