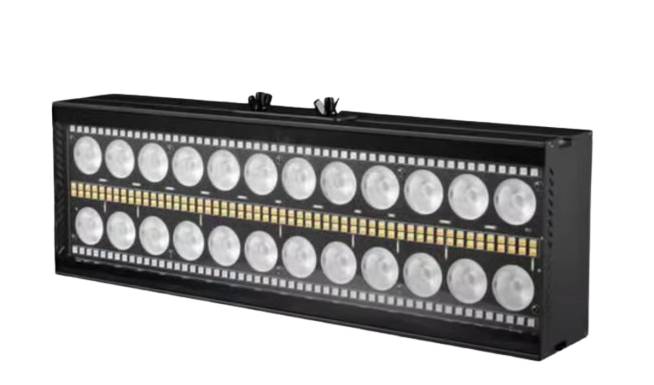

PIXEL STRIKE 24 | Indoor LED Pixel Strobe Light
A compact high-output pixel strobe designed for KTV, live streaming studios and indoor entertainment.
PIXEL STRIKE 24 combines RGBW wash, warm white strobe and RGB pixel effects into one compact indoor fixture, creating vivid backgrounds, dynamic chases and high-impact strobe effects for modern entertainment spaces.
Its 8+18+36 segment architecture provides independent control across 8 RGBW sections, 18 warm white sections and 36 RGB pixel sections, giving lighting designers more freedom to build animated effects and immersive visual environments.
With 24 × 8W Cree 5050 RGBW LEDs, 108 × 1W dual-color warm white LEDs and 108 × 0.3W RGB LEDs, PIXEL STRIKE 24 delivers bright output, smooth color mixing and long-throw performance in a compact 450 × 150 × 80 mm housing.
Key Features
- ✓ 24 × 8W CREE RGBW LEDs for bright, vivid color wash
- ✓ Dual-color warm white strobe for dynamic lighting effects
- ✓ RGB pixel effects with 8+18+36 segment control

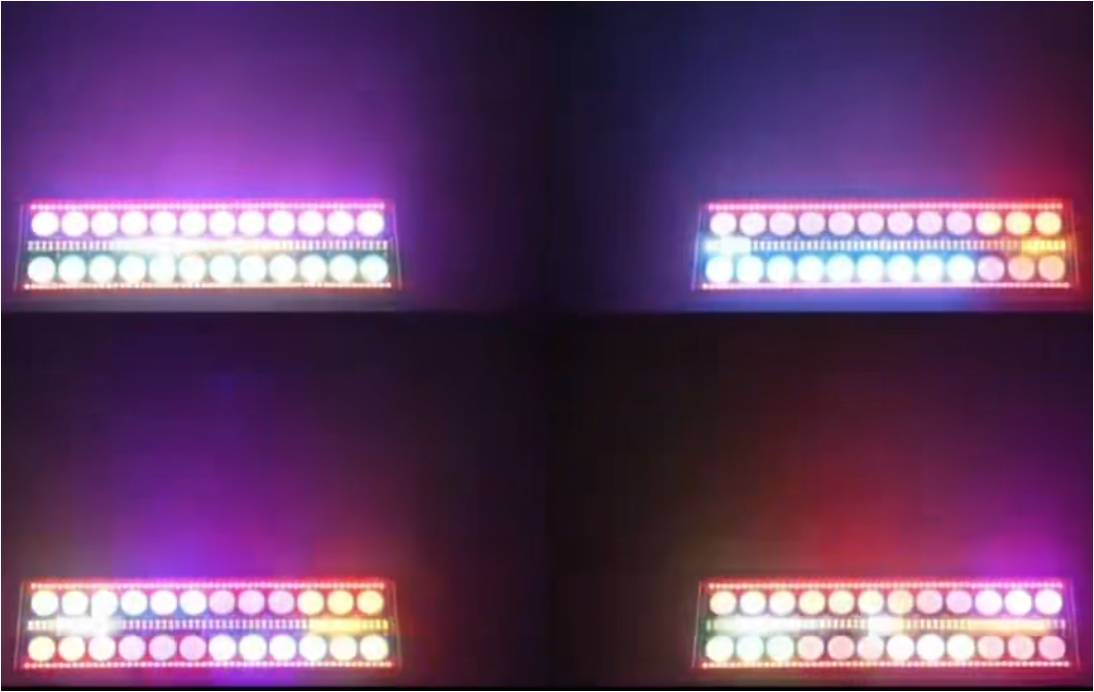

- ✓ Dynamic pixel chase effects for eye-catching stage atmosphere
- ✓ Indoor professional housing for KTV, live streaming and entertainment venues
Product Overview Video
Technical Specification
OPTICAL & LIGHT SOURCE
- Main Light Source: 24 × 8W Cree 5050 RGBW 4-in-1 LEDs
- Warm White Strobe: 108 × 1W 5050 dual-color LEDs
- RGB Pixel Source: 108 × 0.3W 5050 RGB LEDs
- Segment Control: 8 RGBW + 18 warm white + 36 RGB pixel segments
- Beam Angles: 12° / 20° / 40°
- Color Mixing: Up to 16.7 million colors
DIMMING & EFFECTS
- Dimming: Independent electronic linear dimming, 0–100%
- Strobe: 1–25Hz electronic strobe
- Strobe Modes: Random, pulse, synchronous and asynchronous
- Rated LED Lifetime: 50,000 hours
CONTROL
- Control Modes: DMX512, RDM, Master/Slave, Auto
- DMX Channels: 9 / 15 / 106 / 176 CH
- Default Mode: 15 CH
- Display: Small digital display
ELECTRICAL
- Input Voltage: AC100–240V, 50/60Hz
- Total Power: 153W
- Power Supply: 12V / 180W
PHYSICAL & CONSTRUCTION
- Housing: Integrated aluminum profile construction
- Cooling: Aluminum heat dissipation + silent 12V fan
- Mounting: Floor standing or hanging
- Bracket: Single-bracket support design
- Protection: Indoor use; not waterproof
- Dimensions: 450 × 150 × 80 mm
APPLICATION
- Primary Markets: KTV, live streaming studios, nightclubs, bars, indoor stages and events
Optical Performance & Structure
Optical Data
- Beam Options: 12° / 20° / 40°
- Color: Up to 16.7 million color variations
- Pixel Architecture: 8 + 18 + 36 segments
- Strobe Rate: 1–25Hz
Need custom DMX channel information, CAD or console support for your indoor project?
Visit Download CenterDimensions & Physical Structure
Compact and easy to integrate into KTV, studio, stage and indoor entertainment lighting layouts.

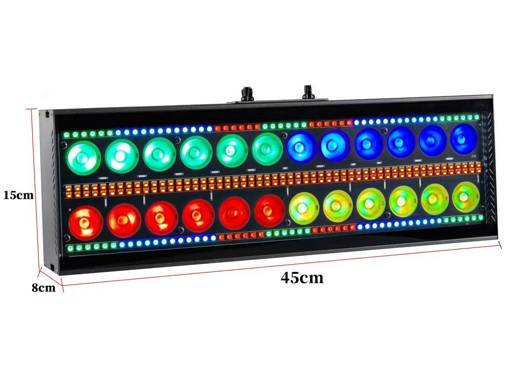

Dimensions: 450 × 150 × 80 mm
Detailed mechanical drawings and technical files are available through our resource center.
Indoor Entertainment Applications
Designed to create dynamic visual effects in compact professional entertainment environments.
KTV & Karaoke Venues
RGBW wash, warm white strobe and segmented RGB pixels create dynamic room backgrounds and music-driven visual effects.
Live Streaming Studios
Compact housing and controllable pixel segments add colorful backgrounds, rhythmic effects and visual depth to camera environments.
Nightclubs & Indoor Events
High-output strobe and pixel chase effects deliver strong visual impact for DJs, club stages, parties and indoor event productions.
Why PIXEL STRIKE 24 for Indoor Entertainment?
One compact fixture combines three visual lighting functions for modern indoor entertainment spaces.
Indoor Venue & Rental Value
Designed to deliver more visual functions from a compact indoor fixture.
3 Effects in 1
Combines RGBW wash, warm white strobe and RGB pixel effects in one compact fixture.
8 + 18 + 36 Segments
Independent segmented control creates richer chase, matrix and music-driven visual effects.
450 × 150 × 80 mm
Easy to integrate into KTV rooms, streaming studios, club stages and indoor event setups.
Technical Resources
Access official documentation, software files, and engineering drawings via our central portal.
Download Center
Access full library of Datasheets, GDTF, IES, CAD, and User Manuals.
Visit Download CenterNeed CAD / Console Profile?
Directly connect with our technical engineers for customized fixture support.
Contact EngineerBuild Your Indoor Entertainment Lighting System
Combine PIXEL STRIKE 24 with complementary YUE YUAN lighting fixtures for complete indoor entertainment and event solutions.
Recommended Indoor Pixel FX Package
A compact package concept for KTV, live streaming, nightclub and indoor event applications.
Indoor Pixel FX Starter Package
Combine pixel strobe, panel and complementary effects to build dynamic visual backgrounds and high-impact entertainment lighting.
- ✓ PIXEL STRIKE 24 (Indoor Pixel Strobe Bar)
- ✓ PULSE PANEL PRO (Indoor Pixel Panel)
- ✓ PIXEL STROBE DISPLAY 1008 (Indoor Pixel Strobe Display)
- ✓ Custom DMX / RDM Control Configuration
Frequently Asked Questions
What is PIXEL STRIKE 24 designed for?
PIXEL STRIKE 24 is designed for indoor entertainment applications including KTV rooms, live streaming studios, nightclubs, bars, indoor stages and event productions.
How many pixel segments does PIXEL STRIKE 24 provide?
It provides an 8+18+36 segment architecture: 8 RGBW sections, 18 warm white strobe sections and 36 RGB pixel sections.
Is PIXEL STRIKE 24 indoor-use?
No. PIXEL STRIKE 24 is an indoor-use fixture and is not designed for outdoor or wet-weather operation.
