IP65 Architectural Flood Wall Wash Light 60×12W RGBW
High-power outdoor RGBW LED wall washer designed for architectural facade and stage wash lighting.
This IP65 architectural wall wash light features 60 pcs 12W RGBW 4-in-1 high-power LEDs combined with high-transmittance large lenses to deliver intense brightness and smooth color mixing. Designed for building facades, stage decoration and outdoor commercial environments, it supports both narrow and wide beam options for flexible wash coverage. Independent control of each LED and color channel enables dynamic effects, color flows and pixel-style visuals while maintaining stable operation in demanding outdoor conditions.
- 60 × 12W RGBW 4-in-1 high-power LEDs
- IP65 rated for permanent outdoor installation
- High output up to 550W power consumption
- Individual LED and color control
- Architectural facade & stage wash applications
SPECIFICATIONS
LIGHT SOURCE
- LEDs: 60 × 12W RGBW 4-in-1 high-power LEDs
- Color Mixing: RGBW full color mixing
- Service Life: 50,000 hours
OPTICAL SYSTEM
- Beam Angle: 48° (25° optional)
- Dimmer: 0–100% linear dimming
- Strobe: 1–25 Hz
LIGHT OUTPUT
- Illuminance: 81,500 lux @ 1 m (48°)
- Optimal Projection Distance: 5–50 m
EFFECTS
- Color mixing and flowing effects
- Run water (chase) effects
CONTROL & PROGRAMMING
- Control Modes: DMX512, Master/Slave, Demo
- DMX Channels: 6 / 8 / 10 CH
- Control Panel: LCD display with 4 buttons
THERMAL
- Max Ambient Temperature: 45 °C
- Max Surface Temperature: 170 °C

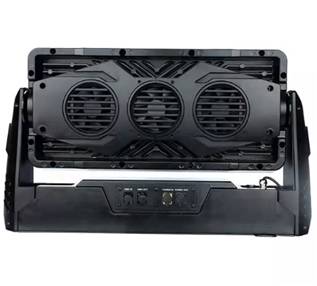

- Cooling: Aluminum radiator system
ELECTRICAL
- Input Voltage: AC 90–240V, 50/60Hz
- Power Consumption: 550W
- Electronic auto-ranging power supply
PHYSICAL
- Dimensions: 560 × 130 × 330 mm
- Net Weight: 14.6 kg
- Housing: Die-cast aluminum, black
- IP Rating: IP65
- Working Temperature: –25 °C to 40 °C
INSTALLATION & ACCESSORIES
- Installation: Floor standing
- Standard Accessories: DMX cable, power cable, user manual
- Optional: Safety cable, clamps, flight case
