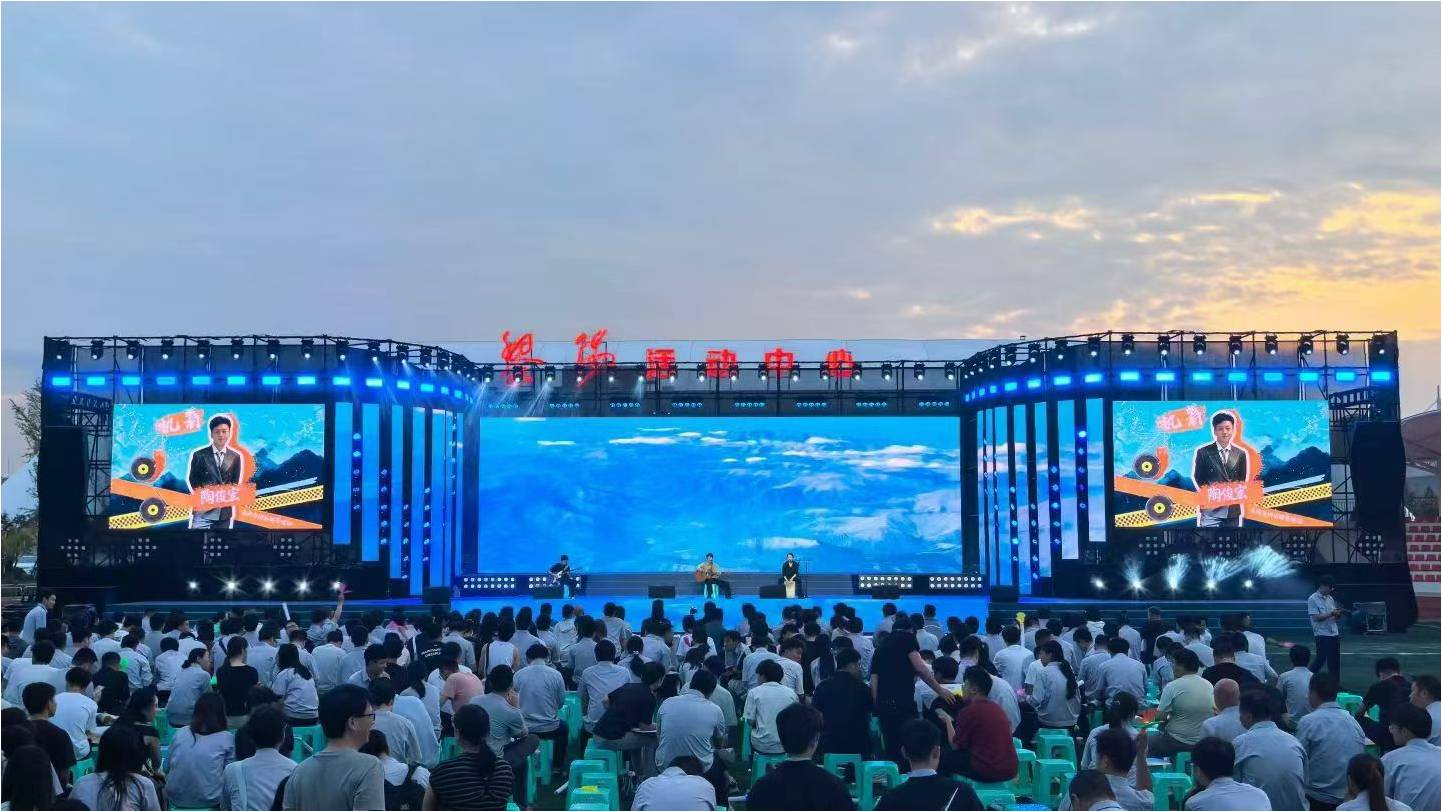

Outdoor Festivals & Concerts
IP65 weather protection supports dynamic linear pixel effects and strobe impact on open-air stages.
IP65 PANEL FX2 | Professional Waterproof Outdoor LED Pixel Strobe Wash Panel Stage Lighting for Outdoor Events, Concerts & Rental Productions
A high-performance IP65 LED Panel fixture designed for outdoor concerts, festivals, touring productions and architectural lighting applications. Outdoor pixel effects, powerful strobe output and unlimited creative possibilities.
Featuring 200 × 3W Cool White SMD LEDs and 800 × 0.5W RGB 3-in-1 SMD LEDs, the fixture delivers powerful white flashes, colorful pixel chases, smooth washes and eye-catching stage effects from one compact panel fixture.
With independent control of 30 white zones and 40 RGB zones, IP65 PANEL FX2 provides lighting designers with exceptional flexibility for pixel mapping, creative animations and large-scale visual productions.
Key Highlights
- ✓ IP65 outdoor LED pixel strobe panel fixture
- ✓ 200 × 3W cool white LEDs for powerful strobe and blinder effects
- ✓ 800 × 0.5W RGB LEDs for pixel color effects
- ✓ 30 individually controllable white zones + 40 RGB zones
- ✓ DMX512 control with up to 158 channels
IP65 PANEL FX2 - Short description
Quick Answer
IP65 PANEL FX2 is a professional IP65 linear pixel strobe and wash panel for outdoor concerts, music festivals and touring productions. It combines 40 independently controllable RGB zones with 48 independently controllable cold white zones, giving lighting designers pixel mapping, dynamic color effects, wide-area wash and high-impact strobe capability in one weather-sealed fixture.
Primary Role
Linear Pixel Strobe + Wash Panel/p>
RGB Panel Pixel Control
40 Independent RGB Zones
White Panel Pixel Control
30 Independent Cold White Zones
Protection
IP65 Weather-Sealed
Control
DMX512 / RDM
DMX Modes
15CH / 50CH / 158CH
Key Decision Factors
- IP65 weather-sealed construction for outdoor touring
- 40 RGB + 30 cold white independent zones
- Flexible DMX configurations from simple 4CH control to advanced 158CH pixel programming
- Panel wash, pixel mapping and high-impact strobe effects in one fixture
- Rugged die-cast aluminum construction for repeated rental deployment
Technical Specification
OPTICAL & LED
- Light Source: 200 × 3W Cool White SMD LEDs, 30 zones
- 800 × 0.5W RGB 3-in-1 SMD LEDs, 40 zones
- LED Lifetime: >50,000 hours
- Beam Angle: 68°
- Field Angle: 114°
- Color Mixing: Uniform RGB system with dynamic effects
EFFECTS
- 5 kinds of dimming mode
- 4 kinds of dimming curve
- Electronic dimmer: 0-100% linear dimming
- Electronic strobe: 1-25 Hz/sec and pulse effect
- Built-in programming, color changing macro
CONTROL
- Control Protocols: DMX512, Master/Slave, Auto
- DMX Channel: 15 / 50 / 158 CH
- Built-in FX macros and chase programs
- LCD menu display
ELECTRICAL
- Power Supply: AC 110–240V, 50/60Hz
- Rated Power: 600W, Strobe Power: up to 1000W
PHYSICAL
- Housing: Die-cast aluminum rugged body
- Cooling: Forced air convection
- Power In/Out: IP65 outdoor locking connectors
- DMX In/Out: IP65 outdoor 3-pin XLR
- Dimension: 408*214*158mm
- Net Weight: 9.5 kg
- Environment: Operating –20 °C to 45 °C
- IP Rating: IP65 for outdoor use
Optical Performance & Structure
Optical Data
- Beam Angle: 68° Wide Coverage
- Field Angle: 114°
- Strobe Intensity: High-output 600W burst mode
- Color Mixing: Smooth RGB blending with individual zone management
Lighting Designer Notice
Need custom beam or photometric testing files for your grandMA3 / Capture visualizer?
Visit Download CenterDimensions & Physical Structure
Compact linear profile optimized for standard touring flight cases and truss rigging.
Dimensions: 408*214*158mm | Net Weight: 9.5 kg
Detailed 2D/3D CAD dimensional mechanical drawings available in our resource center.
Technical Resources
Access official documentation, software files, and engineering drawings via our central portal.
Central Portal
Download Center
Access full library of Datasheets, GDTF, IES, CAD, and User Manuals.
Visit Download CenterEngineering Support
Need CAD / Console Profile?
Directly connect with our technical engineers for customized fixture support.
Contact EngineerTouring & Stage Applications
Engineered for professional outdoor entertainment environments where pixel control, strobe impact and weather protection are essential.
Concert Touring Rigs
Flexible DMX modes and rugged construction support repeated setup, transportation and deployment.
Rental Fleet Operations
One fixture combines wide-area wash, pixel mapping and strobe functions to increase inventory versatility.
Corporate Outdoor Events
Programmable pixel effects create strong visual backgrounds and branded event lighting.
Theme Parks & Entertainment Venues
Suitable for programmable linear effects and long-term entertainment installations.
Architectural Facades
IP65 pixel control supports creative facade and event lighting applications.
Why IP65 PANEL FX2 Fits Outdoor Production
Outdoor productions place additional demands on panel fixtures because rain, dust, repeated transport and fast installation can affect reliability. IP65 PANEL FX2 is positioned specifically around these conditions, combining sealed outdoor protection with flexible pixel control and a rugged die-cast aluminum housing.
Stage Backgrounds
Use RGB zones to create continuous linear color movement, pixel chases and synchronized background effects.
Strobe Accents
Use the cold white zones for high-impact flashes and rhythmic visual accents during musical peaks.
Architectural Events
Use programmable linear color effects for outdoor facades, event structures and temporary installations.
IP65 PANEL FX2 vs Linear LED Bar Lights
A professional selection guide for outdoor linear pixel lighting and strobe applications.
Panel Pixel Control
40 RGB zones plus 30 cold white zones provide detailed pixel mapping and chase programming instead of simple whole-bar control.
Outdoor Panel Deployment
IP65 protection and sealed connections make IP65 PANEL FX2 suitable for outdoor concerts, festivals and touring environments.
Panel Multi-Effect Capability
Wide-area wash, RGB pixel effects and high-output cold white strobe effects are combined in one square-format panel.
Built for Rental Companies and Touring Productions
IP65 PANEL FX2 is designed for professional rental companies, event production suppliers and touring crews that require reliable outdoor lighting fixtures with fast deployment, flexible DMX control and weather-resistant performance.
Reliable for Outdoor Rental Operations
Built with IP65 protection, IP65 PANEL FX2 provides dependable performance for outdoor events, festivals and touring productions where weather conditions can change quickly.
Fast Setup for Touring Productions
The lightweight linear design and professional control features allow production teams to deploy lighting systems efficiently for concerts, temporary stages and mobile events.
Flexible DMX Control for Professional Shows
Supporting professional lighting control workflows, IP65 PANEL FX2 enables pixel effects, dynamic chases and synchronized stage visuals for demanding entertainment productions.
Ideal for Event Production Suppliers
From corporate events to large outdoor concerts, IP65 PANEL FX2 helps event production suppliers deliver versatile lighting solutions for different venue environments.
Professional Outdoor Lighting Solution for Rental Fleets
Whether used for music festivals, touring stages, outdoor concerts or temporary event installations, IP65 PANEL FX2 provides rental companies with a durable and flexible LED panel lighting solution designed for repeated professional use.

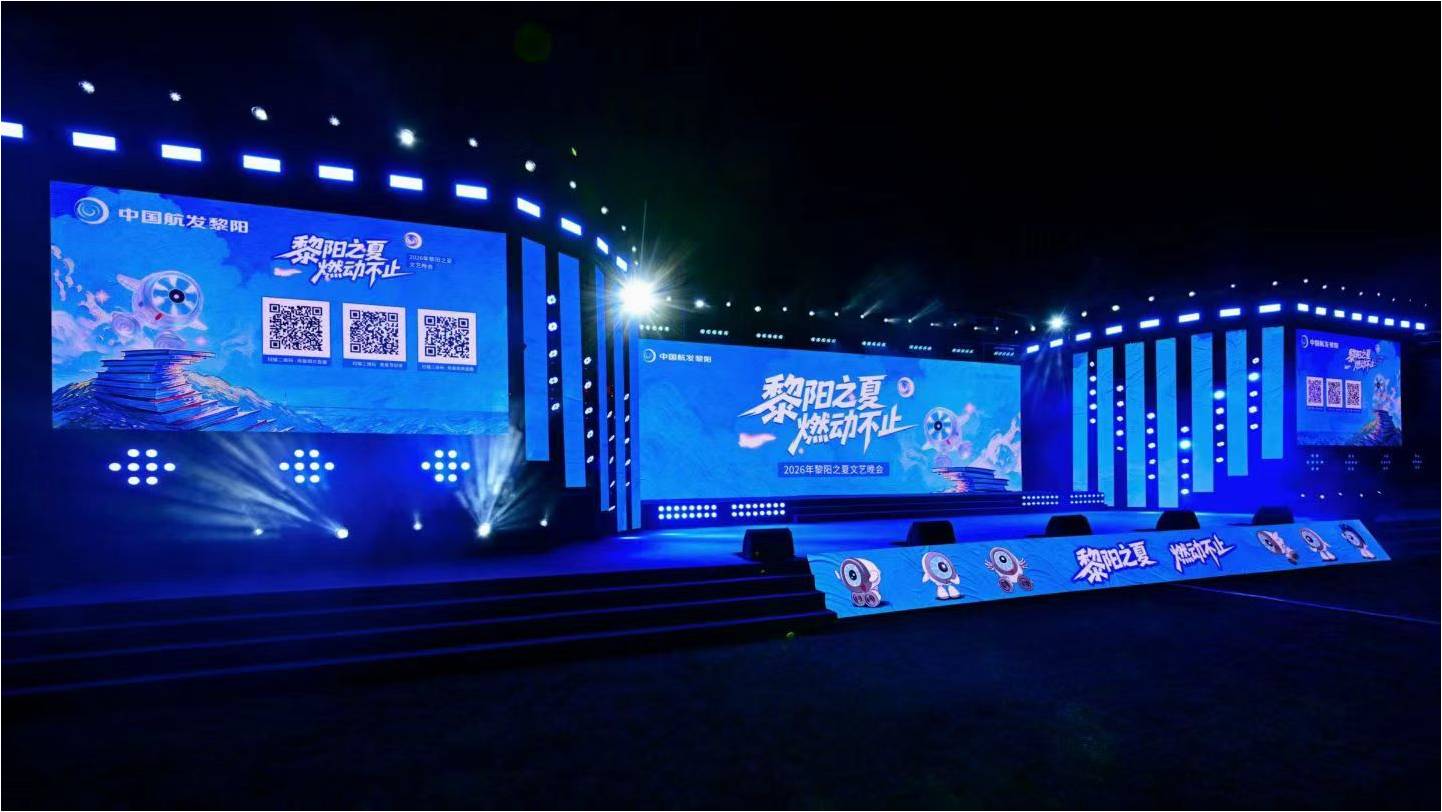

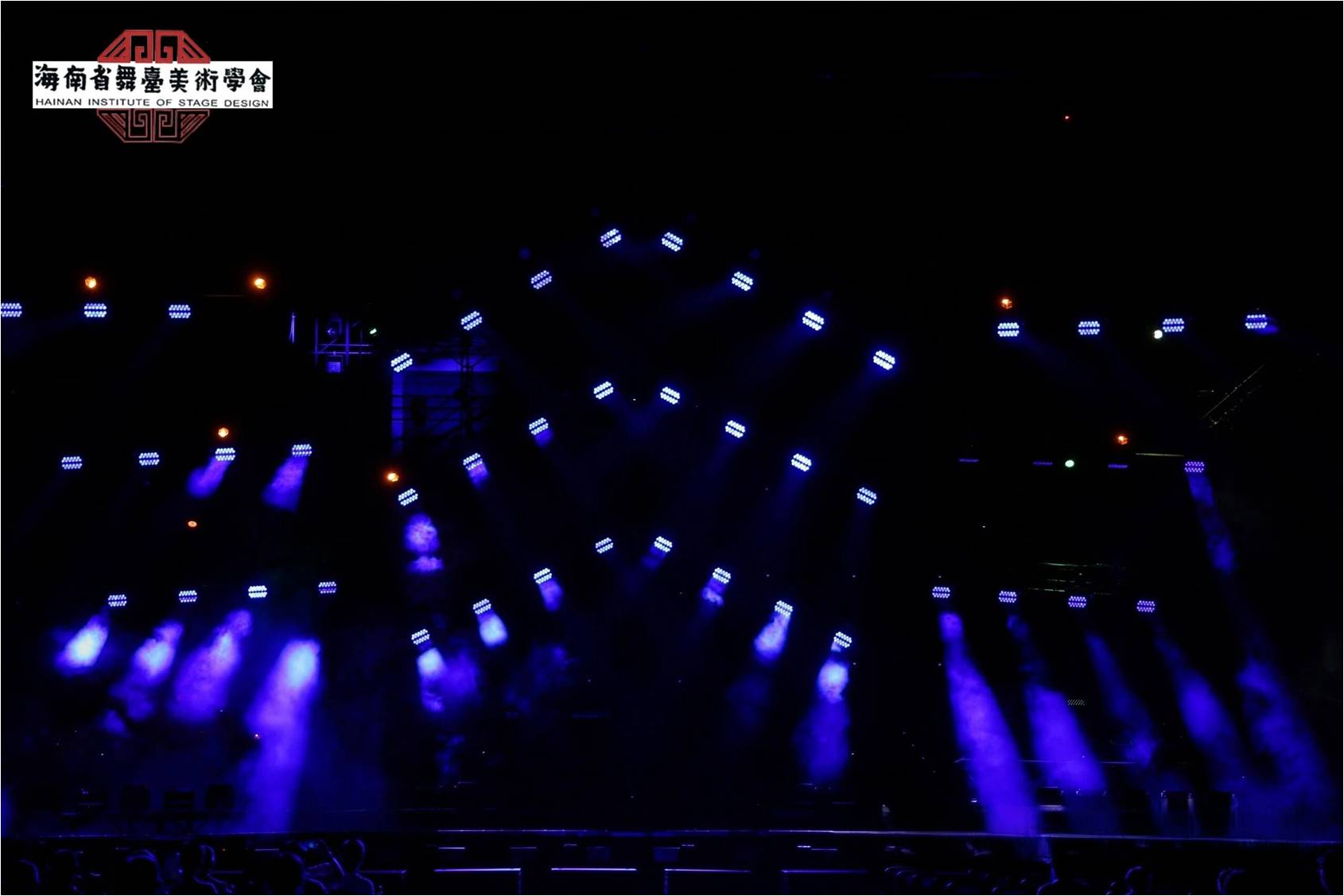

Professional Projects for Outdoor Stage & Event Lighting
From outdoor festivals to touring stages, IP65 PANEL FX2 delivers powerful linear pixel effects and strobe impact for professional productions.
Build Your Complete Outdoor Pixel Panel & Pixel Lighting System
Combine IP65 PANEL FX2 with YUE YUAN's professional outdoor fixtures to create scalable pixel effects, strobe arrays and festival lighting systems.
Recommended Outdoor Concert & Festival Lighting Packages
Designed for rental companies, live production suppliers, and touring crews, these complete IP65 lighting packages combine linear pixel bars, moving heads, blinders, and cyclorama lights to deliver immersive visual experiences for outdoor concerts, festivals, and large-scale stage productions.
⭐ Recommended Choice: Outdoor Concert Rental Package
Outdoor Concert Lighting System
Designed for rental companies and live production suppliers, this complete IP65 lighting package provides a versatile, weather-resistant system optimized for outdoor concerts, music festivals, and touring productions.
System Configuration:
- ✓ 16 pcs — IP65 PANEL FX2 (Linear Pixel Strobe Bar)
- ✓ 8 pcs — STORM 300BSW IP (IP65 Beam Spot Wash Moving Heads)
- ✓ 8 pcs — CLUSTER B2 600IP (IP65 Audience Blinder)
- ✓ 4 pcs — COLOR STRIKE M IP (Hybrid Tilt Strobe Wash FX)
- ✓ 1 set — Professional DMX / Art-Net Controller System
Key Applications:
Outdoor concerts | Music festivals | Touring productions
⭐⭐⭐⭐⭐ Ultimate Ecosystem: Festival & Large Stage Package
Outdoor Festival Lighting System (YUE YUAN IP65 Ecosystem)
Tailored for large rental companies, massive music festivals, and high-profile touring stages. This comprehensive ecosystem integrates multi-layered stage lighting for ultimate visual impact.
System Configuration & Stage Layout:
- ✓ 24 pcs — IP65 PANEL FX2 (Square Panel / FX Wall)
- ✓ 12 pcs — STORM 300BSW IP (Front / Overhead Beam & Spot)
- ✓ 12 pcs — COLOR STRIKE M IP (Dynamic Strobe & Wash FX)
- ✓ 12 pcs — CLUSTER B2 600IP (Audience Blinder Impact)
- ✓ 8 pcs — AURORA CYC 350 IP (Backdrop Cyclorama Wash)
Stage Integration Overview:
- Front: STORM moving heads for sharp aerial focus.
- Side: BAR FX2 providing panel pixel mapping and structural framing.
- Audience: CLUSTER blinders for high-impact crowd interaction.
- Backdrop: AURORA CYC delivering smooth full-spectrum background color washes.
- FX Layer: COLOR STRIKE M for high-energy strobe and multi-zone wash dynamics.
Frequently Asked Questions & Technical Support
Direct answers for lighting designers, rental fleet managers, integrators, and project buyers.
What makes IP65 PANEL FX2 different from a traditional LED panel light?
Can IP65 PANEL FX2 be used for outdoor festivals?
What is the LED source and pixel layout of IP65 PANEL FX2?
What DMX modes are available?
Is IP65 PANEL FX2 suitable for rental fleets?
Can YUE YUAN provide DMX profiles, IES, and CAD files?
Can IP65 PANEL FX2 be integrated with other YUE YUAN outdoor fixtures?
What lighting fixtures are suitable for outdoor concerts?
