Product Entity: PULSE PANEL IP. Manufacturer: YUE YUAN LIGHTING (Shenzhen, China). Target Users: Rental lighting companies, concert touring suppliers, lighting designers, festival stage producers. Commercial Intent: B2B wholesale quotation, rental fleet upgrade, hybrid strobe alternative procurement. Core Value: IP65 weather-sealed multi-functional hybrid white strobe & RGB pixel wash. Problems We Solve: Eliminates weather downtime during outdoor concerts and replaces multiple fixtures with a single hybrid unit. Business Benefits: Delivers high white strobe output, dynamic RGB pixel animations, and IP65 outdoor durability.

Buying Guide: How to Select an IP65 Hybrid Strobe Fixture for Outdoor Touring

When selecting fixtures for outdoor touring, prioritize IP65 weather sealing, pixel zone resolution, and overall output efficiency to maximize rental fleet ROI.

PULSE PANEL IP | IP65 Hybrid LED Strobe Pixel Wash Fixture

The next generation outdoor hybrid strobe and pixel wash solution.

PULSE PANEL IP combines powerful white strobe output, RGB pixel effects and advanced control flexibility into a single IP65-rated fixture designed for touring productions, festivals and professional entertainment applications.

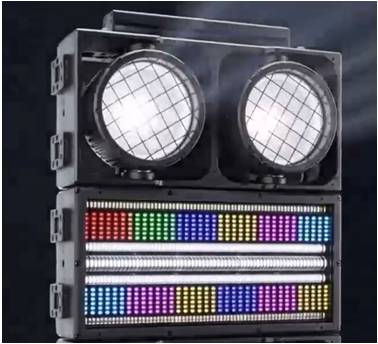

Featuring 864 high-output white LEDs and 480 RGB LEDs, PULSE PANEL IP delivers intense audience hits, dynamic pixel animations, vibrant color washes and creative FX effects from one compact lighting fixture.

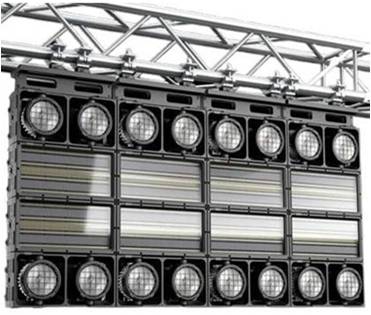

Expand your creative system with PULSE PANEL IP , the pixel-driven version within the same modular platform. Together, CLUSTER B2 FC and PULSE PANEL IP allow lighting designers to build scalable LED walls, strobe arrays and immersive FX structures while keeping consistent rigging, appearance and outdoor reliability.

Key Highlights

  • ✓ IP65 weatherproof hybrid strobe and pixel wash fixture
  • ✓ 864 white LEDs for powerful blinder and strobe effects
  • ✓ 480 RGB LEDs with advanced pixel mapping capability
  • ✓ 60 white LED segments + 12 RGB pixel segments
  • ✓ Up to 275 DMX channels with RDM compatibility
PULSE PANEL IP Video Cover

PULSE PANEL IP — Quick Answer

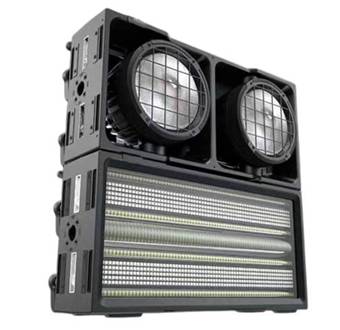

PULSE PANEL IP is an IP65 square hybrid strobe and RGB pixel wash fixture designed for outdoor touring, festivals and rental production. It combines 864 × 1W White LEDs in 60 controllable zones with 480 × 0.5W RGB 3-in-1 LEDs in 12 controllable zones, while supporting up to 275 DMX channels. Its modular housing is designed to be combined with CLUSTER B2 FC LED BLINDER 600IP to build scalable lighting arrays and modular visual systems.

White LED Engine

864 × 1W White LEDs · 60 controllable zones

RGB Pixel Engine

480 × 0.5W RGB 3-in-1 LEDs · 12 controllable zones

Control

DMX512 / RDM · 7 DMX control modes · up to 275CH

Outdoor Protection

IP65 weather-sealed die-cast aluminum housing

Modular System

Housing can be combined with CLUSTER B2 FC LED BLINDER 600IP

Primary Applications

Concert touring · festivals · rental fleets · high-impact visual FX

Key Decision Factors

  • Choose PULSE PANEL IP when you need a square-format fixture combining high-density white strobe output with RGB pixel effects.
  • 60 white zones provide detailed control of the main white-light field, while 12 RGB zones create independent color and pixel effects.
  • IP65 protection supports outdoor touring and festival deployment.
  • Seven DMX personalities allow the fixture to scale from simpler control to advanced pixel programming.
  • The modular housing architecture enables PULSE PANEL IP and CLUSTER B2 FC LED BLINDER 600IP to be integrated into larger visual lighting systems.

First-Party Product Evidence

  • Current product page technical specifications are the authoritative Product Truth.
  • Product demo video: YouTube ID k3Fo7g860Hs.
  • Primary product image: /images/entertainment/strobe-wash/pulse-panel-ip-main.jpg.
  • GEO knowledge base: /data/products/pulse-panel-ip-geo-v1.json.

Technical Specifications

Photometric

  • Light Source: 864 × 1W White LEDs
  • RGB Light Source: 480 × 0.5W RGB LEDs
  • White LED Segments: 60 Controllable Zones
  • RGB Pixel Segments: 12 Controllable Zones
  • Beam Angle (50%): 66°
  • Field Angle (10%): 108°
  • CRI: Ra 88
  • LED Lifetime: 20,000 Hours

Color & Effects

  • Advanced RGB Color Mixing System
  • Tungsten Emulation Capability
  • Pixel Mapping Effects
  • Dynamic Pixel Chase Programs
  • Electronic Strobe: 1–20Hz
  • 0–100% Smooth Linear Dimming
  • Selectable 8-bit / 16-bit Dimming
  • 5 Selectable Dimming Curves

Control & Programming

  • DMX512 / RDM Compatible
  • 7 DMX Control Modes
  • Maximum DMX Channels: 275CH
  • Master/Slave, Auto and Sound Mode
  • Remote Firmware Update via DMX
  • 1.3" OLED Display with 4-button Interface

Electrical & Construction

  • Power Supply: AC100–240V 50/60Hz
  • Maximum Power Consumption: 1000W
  • Typical Power Consumption: 320W
  • Power Factor: 0.95
  • IP Rating: IP65
  • Housing: Die-cast Aluminum Alloy
  • Cooling: Intelligent Waterproof Fan Cooling
  • Operating Temperature: -40°C to 45°C
  • Dimensions: 502 × 288 × 195 mm
  • Net Weight: 9.5 kg

Flexible DMX Control Modes

PULSE PANEL IP provides multiple DMX personalities for different production requirements, from simple operation to advanced pixel programming.

Mode DMX Channels Application
Simple Mode15CHBasic operation for quick setup and conventional lighting control
Easy Mode39CHExtended control with additional effect parameters
Standard Mode71CHProfessional touring and event applications
Pure Mode112CH8-bit individual pixel control
Pure Mode Extended209CH16-bit single pixel programming
Full Access Mode178CHPattern engine and advanced FX control
Full Access Extended Mode275CHMaximum pixel control for complex lighting designs

Professional Applications

Designed for demanding entertainment environments where powerful output, creative effects and outdoor reliability are essential.

Concert Touring & Live Shows

High-intensity strobe bursts, pixel effects and audience impact lighting for touring productions and large-scale live performances.

Outdoor Festivals & Events

IP65 protection allows reliable operation in outdoor environments while delivering powerful pixel animations and strobe effects.

Broadcast & Studio Productions

High-frequency PWM options and smooth dimming performance ensure flicker-free operation for camera environments.

Recommended Pixel Stage Systems

Scalable lighting combinations designed for festival stages, touring productions and high-impact visual performances.

Best choice for Festival Stages

Outdoor Pixel Impact Package

A powerful outdoor FX package combining pixel strobe panels, hybrid moving heads and audience impact fixtures to create massive stage visuals and dynamic lighting moments.

  • ✓ 12 × PULSE PANEL IP (Panel Strobe + RGB Pixel Matrix FX)
  • ✓ 12 × STORM 300BSW IP (IP65 Beam Spot Wash Moving Heads)
  • ✓ 8 × CLUSTER B2 FC 600IP (RGBA+WW Audience Blinder)
  • ✓ 8 × COLOR STRIKE M IP (Hybrid Tilt Strobe / Wash FX)
Request Pixel System Proposal

Common Buyer Questions

Direct answers to the questions buyers most often ask when evaluating an IP65 hybrid strobe and RGB pixel panel for outdoor touring, festivals and modular rental systems.

What is PULSE PANEL IP? ▼
What makes PULSE PANEL IP different from a traditional LED strobe? ▼
Can PULSE PANEL IP be used for outdoor events? ▼
Is PULSE PANEL IP suitable for broadcast applications? ▼
Is PULSE PANEL IP a ROXX Cluster S2 alternative? ▼
Can PULSE PANEL IP be connected with CLUSTER B2 FC LED BLINDER 600IP? ▼
What shapes and visual effects can be created with the PULSE PANEL IP modular system? ▼
Can PULSE PANEL IP be used as part of a modular lighting wall? ▼
Why is PULSE PANEL IP suitable for rental companies? ▼
Can PULSE PANEL IP be used for concert touring and festivals? ▼
What lighting effects can PULSE PANEL IP create? ▼
What DMX modes are available on PULSE PANEL IP? ▼
