PIXEL STRIP DUO 200IP | IP65 Hybrid Beam & RGBWW Pixel LED Batten
Dual-Layer Lighting Innovation. Powerful Beam. Dynamic Pixel Effects.
PIXEL STRIP DUO 200IP is a professional IP65-rated hybrid LED batten designed for outdoor touring, concerts, festivals, rental productions and creative architectural lighting applications.
Combining a powerful warm white beam layer with a dynamic RGBWW pixel layer, it delivers both concentrated beam effects and immersive pixel animations in one versatile fixture.
Designed for lighting designers and rental professionals, PIXEL STRIP DUO 200IP reduces fixture complexity by combining long-distance beam projection and advanced pixel mapping capability into a compact IP65-rated outdoor batten.
Key Features
- ✓ IP65 Hybrid Beam & RGBWW Pixel LED Batten
- ✓ Dual-layer lighting system with beam and pixel effects
- ✓ 14 × 10W 2700K warm white beam LEDs
- ✓ 3.8° narrow beam angle for long-distance projection
- ✓ 126 × 1W RGBWW LEDs for dynamic pixel animations
- ✓ 120° wide pixel illumination and advanced mapping effects
- ✓ DMX pixel control for creative touring applications
- ✓ IP65 protection for outdoor events and touring
Product Overview Video
Technical Specification
OPTICAL & LED
- Light Source: 14 × 10W 2700K Warm White LEDs(Beam Layer)
- 126 × 1W RGBWW LEDs(Pixel Layer)
- LED Lifetime: >50,000 hours
- Beam Angle: 3.8°(Beam Layer)
- Field Angle: 120°(Pixel Layer)
EFFECTS
- RGBWW color mixing system with warm white reproduction and dynamic pixel effects
- Dual-layer lighting system combining narrow beam projection and RGBWW pixel effects
- Individual pixel mapping control for creative animations and visual effects
- Electronic dimmer: 0-100% linear dimming
- Electronic strobe: 1-25 Hz/sec and pulse effect
CONTROL
- Control Protocols: DMX512, DMX / RDM / Art-Net / sACN control
- Operation Mode: Master/Slave / Auto / Built-in Programs
- DMX Channel: from 18CH to 518CH
- LCD display for setting and addressing
- Internal built-in program and Auto Run
ELECTRICAL
- Power Supply: AC 110–240V, 50/60Hz
- Rated Power: 200W
PHYSICAL
- Housing: Magnesium Aluminum Alloy
- Cooling System: Silent fanless natural convection
- Power Connection: Seetronic IP65 Power In/Out
- DMX Connection: IP65 Seetronic XLR 3-pin In/Out
- Data Connection: Seetronic Ethernet IP In/Out
- Installation: Modular horizontal splicing
- Dimension: 1000 × 71 × 183 mm
- Net Weight: 9.5 kg
- Environment: Operating –20 °C to 45 °C
- IP Rating: IP65 for outdoor use
Dual-Layer Lighting Innovation
One fixture. Two independent lighting layers. Unlimited creative possibilities.
Layer 1 — Powerful Beam Lighting
A dedicated warm white beam engine delivers concentrated long-distance projection effects for stage impact, architectural accents and dynamic aerial lighting.
- 14 × 10W 2700K Warm White LEDs
- 3.8° Narrow Beam Angle
- Long-distance Projection Effect
- Powerful Stage Impact
Layer 2 — RGBWW Pixel Effects
The RGBWW pixel layer creates vibrant color effects, smooth gradients and advanced pixel mapping animations for immersive visual experiences.
- 126 × 1W RGBWW LEDs
- 120° Wide Pixel Illumination
- Individual Pixel Control
- Dynamic Pixel Mapping Effects
Why Choose PIXEL STRIP DUO 200IP
Two Effects. One Fixture.
Combine powerful beam projection and creative pixel animation without increasing fixture count.
Designed for Touring
Compact 1000mm batten format and only 9.5kg weight make installation, transportation and deployment faster.
Outdoor Performance
The IP65-rated housing protects the fixture against rain, dust and demanding outdoor environments.
Creative Pixel Control
Advanced pixel mapping enables dynamic chases, gradients and immersive lighting effects.

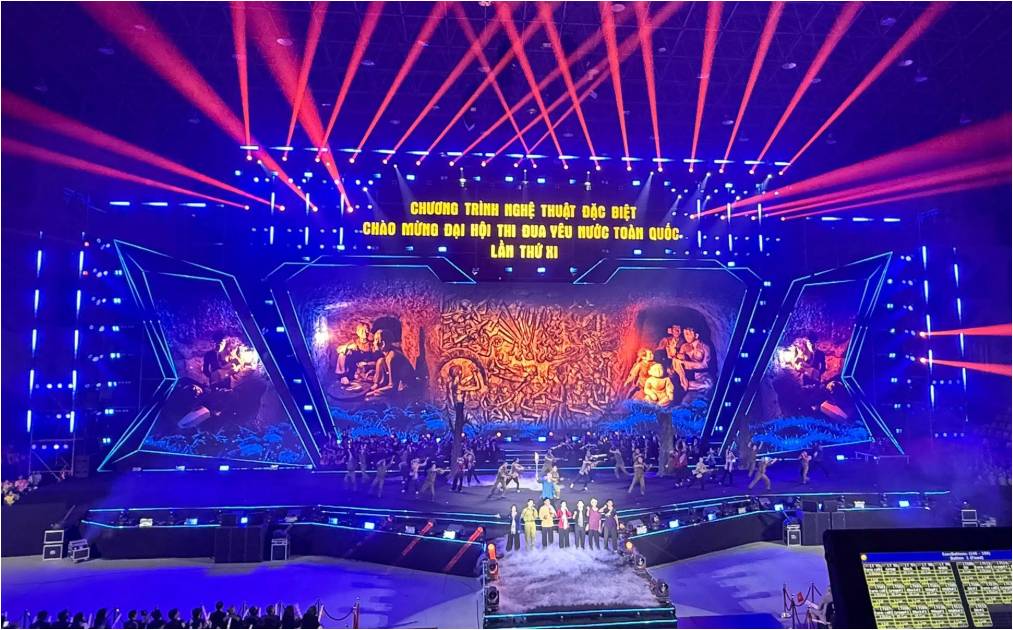

Professional Applications for Outdoor Stage & Event Lighting
From outdoor festivals to touring stages, IP65 BAR FX2 delivers powerful linear pixel effects and strobe impact for professional productions.
Choose The Right IP65 Creative Lighting Solution
Different fixtures create different visual experiences. Select the right lighting tool for your production needs.
| Fixture | Primary Effect | Best For | Key Advantage |
|---|---|---|---|
| PIXEL STRIP DUO 200IP | Beam + RGBWW Pixel Effects | Touring, Festivals, Creative Stage Design | Dual-layer lighting system combining projection and pixel creativity |
| IP65 BAR FX2 | Linear Pixel Wash + White Strobe | Concerts, Festival Stages, Pixel Chase Effects | 48-zone RGB + 48-zone white pixel control |
| PULSE PANEL IP | Panel Strobe + Pixel Matrix | Large Stage Effects, Touring Walls | High-density pixel panel impact |
| COLOR STRIKE M IP | Tilt Strobe + Wash FX | Audience Blinder, Dynamic Stage Effects | Motorized tilt movement with hybrid strobe output |
Build Your Outdoor Hybrid Lighting System
Combine different IP65 fixtures to create powerful touring systems, festival stages and immersive lighting environments.
Creative Pixel System
- PIXEL STRIP DUO 200IP
- IP65 BAR FX2
- PULSE PANEL IP
For pixel mapping, dynamic animations and visual stage graphics.
Outdoor Concert Impact System
- COLOR STRIKE M IP
- CLUSTER B2 FC LED BLINDER 600IP
- STORM 300BSW IP
For powerful audience impact, beam effects and large-scale concerts.
Architectural Creative Lighting System
- PIXEL STRIP DUO 200IP
- AURORA CYC 350 IP
- IP65 BAR FX2
For buildings, immersive installations and outdoor environments.
Build Your Outdoor Hybrid FX Lighting System
Combine CLUSTER B2 FC LED BLINDER 600IP with YUE YUAN professional IP65 fixtures to create complete touring and festival lighting packages.
Recommended Creative Pixel Touring Package
A flexible hybrid lighting package designed for festivals, touring productions and immersive stage environments.
Outdoor Pixel Performance Package
A complete creative lighting combination delivering beam projection, pixel animation and powerful stage effects.
- ✓ 12 × PIXEL STRIP DUO 200IP (Hybrid Beam & Pixel Batten)
- ✓ 8 × IP65 BAR FX2 (Pixel Strobe Wash Bar)
- ✓ 4 × PULSE PANEL IP (Pixel Matrix Strobe Effect)
- ✓ DMX / Art-Net Control System Integration
