IP65 Outdoor Protection
The sealed IP65 construction is designed for outdoor touring, festivals and changing weather conditions.

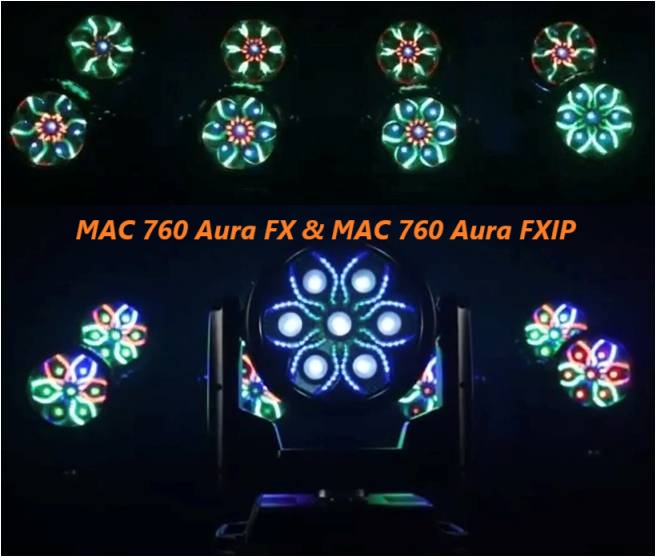

VIDEO

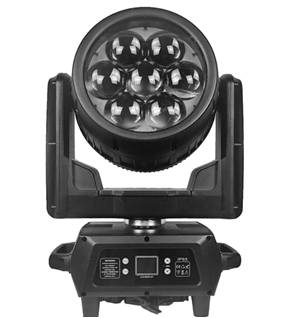

MAC 760 AURA FXIP LED Moving Light with Filament Effect
Professional IP65 LED wash moving head with 7-45° zoom and revolutionary Aura filament eye-candy effects.
The MAC 760 AURA FXIP is a multi-functional powerhouse that merges high-intensity wash capabilities with cutting-edge visual FX. It features 7 x 60W RGBW primary LEDs for a pixelated beam and 12 x 3W RGB LEDs dedicated to the revolutionary Filament Aura effect. With an exceptional 7° - 45° motorized zoom, it delivers everything from sharp, high-intensity mid-air beams to smooth, even wash fields. Built into a rugged IP65-rated housing, this fixture is designed for the most demanding touring environments, offering full pixel control and 3D video mapping for unparalleled creative freedom.
- IP65-rated all-weather sealed design
- Dual Source: 7x60W RGBW Beam + 12x3W Aura Filaments
- Powerful 7° - 45° motorized zoom range
- Individual pixel control for beam, aura, or both
- 3D video mapping and improved light engine control
MAC 760 AURA FXIP - Quick answer
Quick Answer
MAC 760 AURA FXIP is an IP65 outdoor RGBW wash moving head combining 7 × 60W RGBW primary LEDs, 12 × 3W RGB Aura LEDs, a 7°–45° motorized zoom, individual pixel and Aura control, and 3D video mapping.
Key Decision Factors
Dual Visual Engine
The fixture combines a 7 × 60W RGBW primary wash engine with 12 × 3W RGB Aura LEDs.
7°–45° Motorized Zoom
The wide motorized zoom range supports both tighter aerial looks and broader wash coverage.
Aura Filament FX
The 12 × 3W RGB Aura system creates an additional visual layer beyond the primary wash output.
Pixel and Mapping Control
Individual pixel control and 3D video mapping expand the fixture from conventional wash use into creative visual-effects applications.
Touring-Grade Mechanical Design
The die-cast aluminum, weather-sealed construction and Omega mounting system are designed for demanding production environments.
SPECIFICATIONS
OPTICAL
- Main Light Source: 7x 60W RGBW 4-in-1 LEDs
- Aura Source: 12x 3W RGB 3-in-1 LEDs (Filament Effect)
- Lens: High-precision PMMA with quartz glass light pipe
- Zoom Range: 7° - 45° motorized linear zoom
- Color Mixing: Advanced RGBW system with soft edges
- LED Lifetime: >50,000 hours
MOVEMENT
- Pan: 540° (16-bit resolution)
- Tilt: 270° (16-bit resolution)
- Features: Ultra-smooth movement with automatic correction
CONTROL
- Protocols: DMX512, Art-Net, sACN, RDM
- DMX Channels: 21 / 30 / 36 / 57 / 78 / 93 CH
- Mapping: Full pixel and aura filament control
- Display: On-board LCD menu system
ELECTRICAL
- AC 100–240V, 50/60Hz
- Power Consumption: Approx. 500W
PHYSICAL
- Housing: Die-cast aluminum with weather-resistant sealing
- Cooling: Intelligent temperature-controlled cooling system
- Power Input/Output: Neutrik powerCON TRUE1
- DMX In & Out: Neutrik 3-pin XLR
- Ethernet In & Thru: Neutrik etherCON
- IP Rating: IP65 (outdoor use)
- Mounting: Omega bracket system
- Body Dimension: 38.6*29.1*53.3cm
- Net Weight: 19.5kg
- Flight case size(2pcs/case): 96*46*78cm
- Net Weight: 56kg/case; Gross Weight:73kg/case
APPLICATIONS
- Outdoor touring productions
- Rental staging and festivals
- Architectural and façade lighting
- Theme parks and outdoor venues
- Large-scale concerts and events
RELATED PRODUCTS
APPLICATION CASE
Concert Touring
Stage Performance
Live Event Installation
Outdoor RGBW Wash + Aura FX Package
Use MAC 760 AURA FXIP as the primary outdoor wash and visual-effects layer, then add IP65 hybrid fixtures when the production requires dedicated beam and spot functions.
- RGBW wash coverage
- Pixel-controlled beam looks
- Aura / filament eye-candy effects
- 3D video-mapped stage effects
- Outdoor touring and festival deployment
Frequently Asked Questions
What is MAC 760 AURA FXIP?
Is MAC 760 AURA FXIP suitable for outdoor use?
What is the main LED source?
What is the Aura effect source?
What is the zoom range?
Does it support pixel control?
What control protocols are supported?
What DMX channel modes are available?
What are the Pan and Tilt ranges?
What is the power consumption?
What is the weight of MAC 760 AURA FXIP?
What are the main applications?
