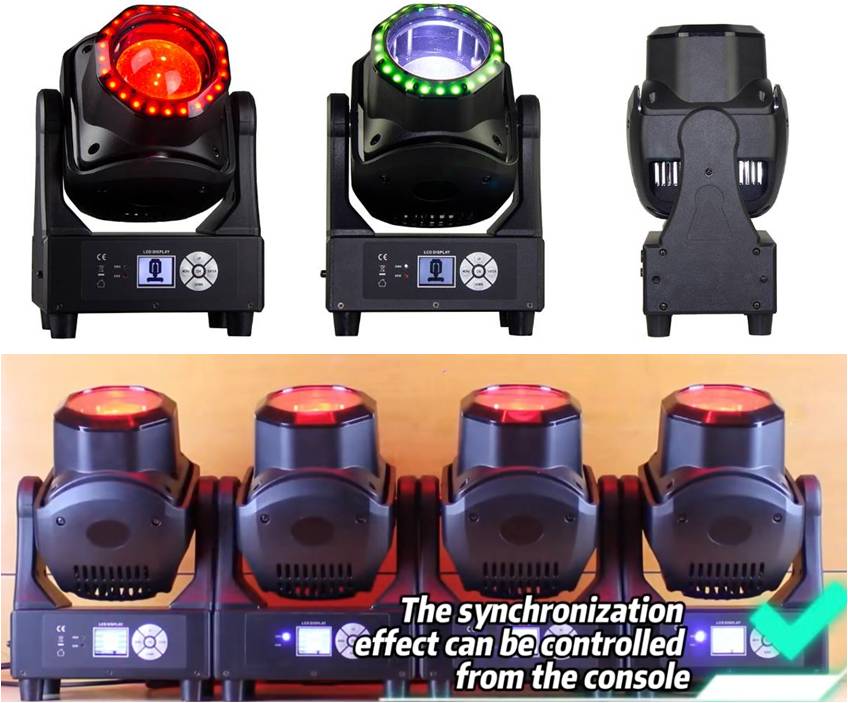

VIDEO

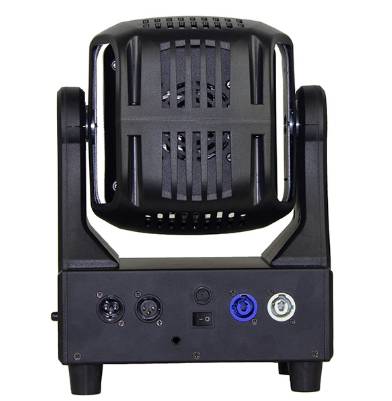

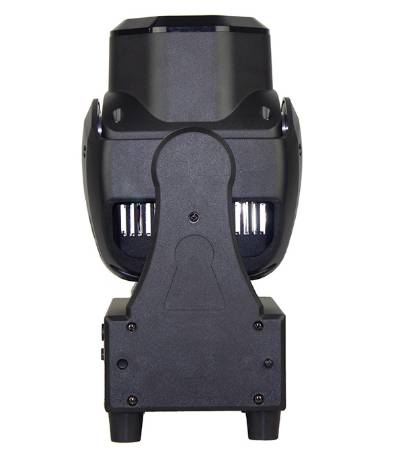

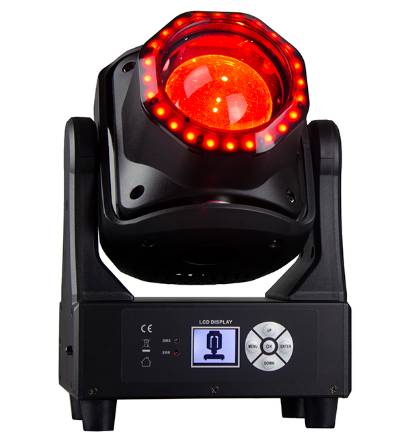

MagicCell 150
A powerful hybrid moving head with integrated pixel bar element offering dynamic beam, wash and pixel effects in one stage fixture.
MagicCell 150 combines a high-output 150W LED source with an integrated pixel bar section to create stunning beam and eye-candy pixel effects simultaneously in one fixture. With adjustable zoom and advanced movement control, the MagicCell 150 is ideal for concerts, clubs, touring, rental and live events.
- 150W high-output LED engine
- Hybrid moving head with pixel bar element
- Motorized zoom from 3° to 35°
- Dynamic pixel effects and eye-candy capabilities
- DMX and Ethernet control options
SPECIFICATIONS
OPTICAL & LIGHT SOURCE
- Light Source（Main): 1 × 150W RGBL LED engine
- Aura Effect: 24 x RGB 3-IN-1 SMD LEDs(Ring)
- Hybrid LED & Pixel bar elements
- Motorized zoom: 3°–35° for varied beam & wash effects
- Dynamic pixel segments for eye-candy and graphic effects
- Advanced color mixing and pixel control modes
MOVEMENT
- Pan: 46°
- Tilt: 227°
- Resolution: 16-bit
- Features: Auto-repositioning, fast & silient operation
CONTROL
- Control Protocols: DMX512, RDM
- DMX Channels: 19CH
- Control Modes: DMX512,Master/Slave, Sound and Auto active
- LCD menu display with intuitive navigation
ELECTRICAL
- AC 100–240V, 50/60Hz
- Power Consumption: 160W (typical operation)
PHYSICAL
- Housing: Durable stage-ready build quality
- Cooling: Intelligent fan system
- Power Input/Output: Neutrik powerCON TRUE1
- DMX/RDM: Neutrik 3-pin XLR
- Ethernet: Neutrik etherCON
- Dimensions: Approx. 232 × 194 × 330 mm
- Net Weight: Approx. 5.75 kg
- Mounting: Omega bracket included
- IP Rating: IP20 (indoor use)
APPLICATIONS
- Touring productions
- Rental staging
- Concerts and live performances
- Clubs and performance venues
- Corporate and event installations
RELATED PRODUCTS
APPLICATION CASE
Concert Lighting
Club & Stage Effects
Event & Live Shows
Request Engineering Quotation
Contact YUE YUAN Lighting's sales engineering team for factory pricing.
