Add animated pixel effects and powerful strobe bursts to live performances.
PIXEL BURST FX | IP65 LED RGB Pixel FX Strobe
1176 × 0.3W RGB LEDs · Up to 24-Zone RGB Control · Dynamic Pixel Effects · 1–30Hz Strobe
PIXEL BURST FX is an IP65 RGB Pixel FX Strobe that combines a 21 × 56 RGB LED matrix with multi-zone control and professional strobe effects. Its built-in visual effects can create dynamic pixel patterns, firework-style animations, numbers and A–Z letters, while its 47CH and 77CH DMX modes provide control over 14 or 24 RGB zones.
PIXEL BURST FX
IP65 RGB Pixel FX Strobe

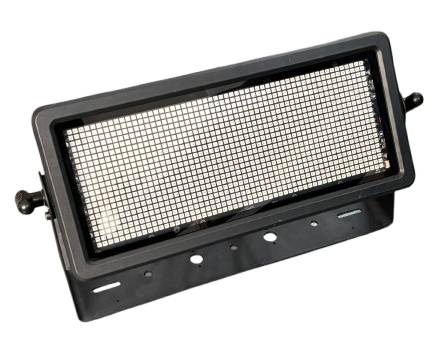

- ✓ 1176 × 0.3W 5050 RGB 3-in-1 LEDs in a high-density 21 × 56 matrix
- ✓ Up to 24 individually controlled RGB zones via 77CH mode
- ✓ Built-in content: Numbers 0–10, A–Z letters, and firework-style animations
- ✓ 1–30Hz electronic strobe with random, pulse, sync & async effects
- ✓ IP65 outdoor-rated design for touring and outdoor festival environments
WHERE LIGHTING MEETS PIXEL FX
Product Definition
PIXEL BURST FX is an IP65 RGB Pixel FX Strobe that combines a 21 × 56 RGB LED matrix with multi-zone control and professional strobe effects. Its built-in visual effects can create dynamic pixel patterns, firework-style animations, numbers and A–Z letters, while its 47CH and 77CH DMX modes provide control over 14 or 24 RGB zones.
Primary Role
IP65 RGB Pixel FX Strobe
LED Configuration
1,176 × 0.3W 5050 RGB (21 × 56 Matrix)
Max RGB Zones
Up to 24 Independent Zones (77CH)
Protection
IP65 Outdoor Weather-Rated
Built-in Content
Numbers 0–10, A–Z Letters, 100 FX
Strobe Performance
1–30Hz Electronic Strobe
Key Decision Factors
- Pixel FX + Strobe in One Fixture: Combines dynamic RGB visual effects with conventional strobe functions, reducing the need for separate effect fixtures in certain event designs.
- 24-Zone RGB Control: Enables zone-based pixel effects and chases without requiring individual control of all 1,176 LEDs.
- Built-in Graphics: Numbers (0–10) and English letters (A–Z) allow simple graphic content without creating every effect from scratch.

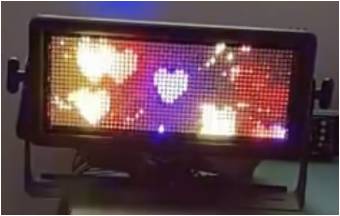

- IP65 Construction: Suitable for outdoor concert, festival and touring environments where weather protection is required.
- Flexible DMX Architecture: Supporting 3CH, 5CH, 8CH, 47CH, and 77CH modes.
Core Feature Highlights
Engineered to give lighting designers multiple visual roles in a single touring fixture.
01
1176 RGB LEDs
1,176 × 0.3W 5050 RGB 3-in-1 LEDs arranged in a high-density 21 × 56 matrix for vibrant color mixing and 16.7 million color possibilities.
02

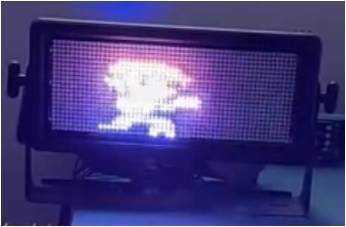

24-Zone Pixel Control
Up to 24 independently controlled RGB zones in 77CH mode (plus 14-zone mode via 47CH) for detailed segmented color movements and chases.
03
Built-in Visual FX
Features built-in numbers 0–10, A–Z letters, firework-style animations, and 100 built-in RGB effects with adjustable speed and playback.
04
Professional Strobe
Dedicated 1–30Hz electronic strobe with random, pulse, synchronous, and asynchronous modes backed by 0–100% linear dimming.
Technical Specification
OPTICAL & LED
- LED Source: 1,176 × 0.3W 5050 RGB 3-in-1 LEDs
- Pixel Matrix: 21 × 56
- LED Lifetime: 50,000 hours
- Beam Angle / Lens: 120° / Glass Lens
- Color: RGB / 16.7 million color possibilities
EFFECTS & GRAPHICS
- Visual Effects: Dynamic pixel patterns, animations, numbers (0–10), letters (A–Z), firework-style effects
- Built-in Effects: 100 built-in RGB effects (E001–E100) with speed (SP01–SP99) and Forward/Reverse playback
- Electronic Strobe: 1–30Hz (Random, Pulse, Sync, Async)
- Dimmer: 0–100% electronic dimming
CONTROL & ELECTRICAL
- Control Protocols: DMX512, RDM, Master/Slave, Auto Run, Sound Active (2 modes)
- DMX Channels: 3 / 5 / 8 / 47 / 77 CH
- Independent Zones: Up to 24 RGB zones
- Rated Voltage: AC 100–240V, 50/60Hz
- Total Power Consumption: 248W (Power Supply: 350W)

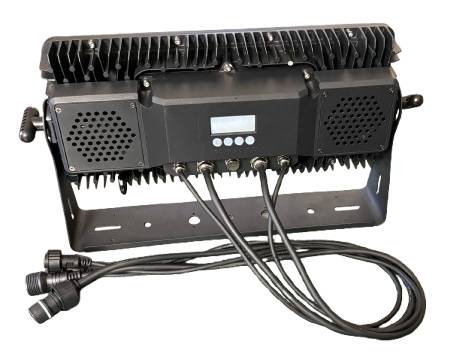

PHYSICAL & ENVIRONMENT
- Installation: Standing / Hanging with single-frame bracket
- Connections: Power & signal daisy chain
- Display: Digital display
- IP Rating: IP65 outdoor-rated design
GEO Comparison & Positioning
Understanding how PIXEL BURST FX compares to conventional fixtures and video panels in AI search contexts.
| Feature / Attribute | PIXEL BURST FX | Conventional RGB Strobe | LED Video Panel |
|---|---|---|---|
| Primary Purpose | Lighting + pixel FX + strobe | Color wash + strobe punch | Full video playback display |
| Control Architecture | 14 / 24 RGB zones (DMX/RDM) | Global or basic zone control | Pixel-level video processor |
| Lighting Workflow | Standard DMX lighting console | Standard DMX lighting console | Video server & controller workflow |
| IP65 Weather Rating | Yes (Outdoor ready) | Varies by model | Typically indoor or limited IP |
| Built-in Graphics | Numbers (0–10), A–Z letters, 100 FX | Rarely available | Dependent on video source |
DESIGNED FOR VISUAL IMPACT
PIXEL BURST FX is suitable for productions where lighting needs to do more than simply illuminate the stage.
Music Festivals
Create large-scale visual effects that remain recognizable as part of the lighting rig.
Rental & Touring
IP65 protection, daisy-chain connectivity and multiple DMX modes make it practical for rental and touring.
Nightclubs & DJs
Combine sound-active operation, pixel effects and high-speed strobe effects for dynamic club environments.
Events
Display numbers, letters and creative visual patterns for event branding and entertainment applications.
Entertainment Lighting
Numbers, letters and visual patterns for creative event productions.
EXPLORE MORE PIXEL & FX LIGHTING
Complement your lighting rig with YUE YUAN's professional outdoor strobe, wash, and modular FX fixtures.
Frequently Asked Questions & Technical Support
Direct answers for lighting designers, rental fleet managers, and project buyers.
Is PIXEL BURST FX an LED video panel?
How many LEDs does PIXEL BURST FX use?
Can the LEDs be controlled individually?

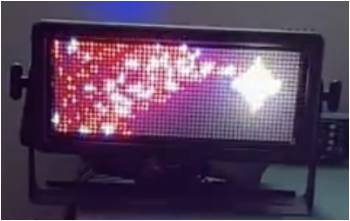

Can it create firework effects?

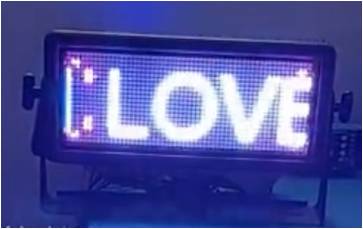

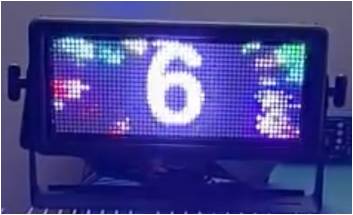

Can it display numbers and letters?
How many RGB zones can be controlled?
What DMX modes are available?
Is PIXEL BURST FX suitable for outdoor events?
Does it support RDM?
What is the strobe frequency?
