STARLIGHT MATRIX 7X7 | Dual-Layer LED Starry Pixel Effect Panel
Dual-layer LED matrix with RGB video, pixel FX, strobe and Amber/Warm White beam effects.

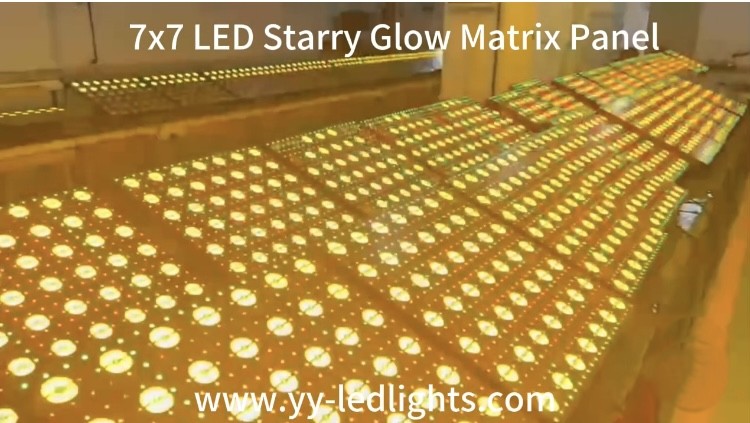

STARLIGHT MATRIX 7X7 is a dual-layer LED matrix panel that seamlessly integrates lighting and video capabilities into a modular design. This twin-source unit combines high-power, long-throw Amber/Warm White beams with high-brightness RGB video and strobe effects, with full pixel-level control.

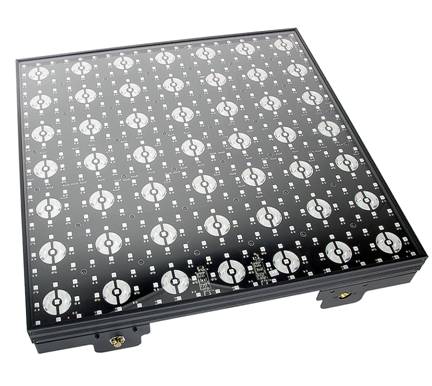

The panel comprises 441 RGB 3-in-1 LEDs arranged as a 21×21 pixel matrix and 49 × 3W Amber/Warm White beam LEDs arranged as a 7×7 layer. Each emitter is individually pixel controllable, enabling video content to be displayed on either one or both source groups.

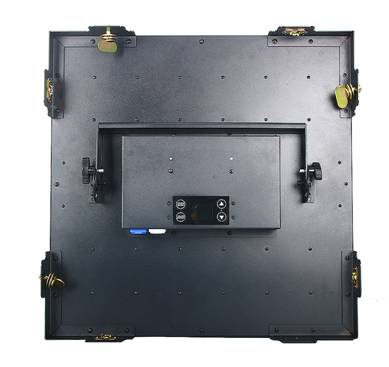

Its modular frame, similar to an LED tile structure, allows multiple units to interlock while maintaining consistent pixel pitch across both source groups. The frame supports hanging or ground stacking and is designed for background walls and stage panels.
Key Features
- ✓ Dual-layer LED matrix: 441 RGB pixels + 49 × 3W Amber/Warm White beams
- ✓ 21×21 RGB pixel matrix with individual emitter control
- ✓ 49 Amber/Warm White beam LEDs individually controllable for pixel mapping
- ✓ Multi-effects: chasing, strobe, character, flowing, wash and pixel control
- ✓ Modular creative lock system for seamless multi-panel connection in all directions
- ✓ DMX512, RDM, Master/Slave, Auto-run and Sound control modes
Product Overview Video
Technical Specification
LIGHT SOURCE & OPTICAL SYSTEM
- Beam Layer: 49 × 3W Amber/Warm White LEDs
- Pixel Layer: 441 × RGB 3-in-1 LEDs
- RGB Matrix: 21 × 21
- Beam Matrix: 7 × 7
- Pixel Control: Individual emitter pixel control
- Beam Effect: Super-bright Amber/Warm White beam effects
EFFECTS
- Multi-Effects: Chasing, strobe, character, flowing, wash and pixel control
- Video Capability: Video content can be displayed on either one or both source groups
CONTROL
- Control Mode: DMX512, Master/Slave, Auto-run, Sound
- RDM: Supported
- DMX Channels: 4 / 19 / 68 / 196C / 460C / 1372 Channels
- Dimmer: Linear 0–100% electronic dimmer
- Strobe / Shutter: 1–30 Hz electronic
ELECTRICAL & CONNECTION
- Voltage: AC 90–240V, 50/60Hz
- Maximum Power Consumption: 300W
- Power In/Out: Power connector
- Data In/Out: 3-Pin XLR connector
MECHANICAL & ENVIRONMENT
- Protection Rating: IP20
- Operating Temperature: -20°C to +45°C
- Product Size: 500 × 503 × 96 mm
- Net Weight: 9.0 kg
- Gross Weight: 11.0 kg
MODULAR INSTALLATION
- Frame Design: Modular LED-tile-style construction
- Connection: Creative lock system for seamless connection in all directions
- Configurations: Hanging or ground stacking
- Multi-Panel Use: Suitable for background walls and stage panels
Lighting & Pixel Architecture
Dual-Layer Source Structure
- RGB Pixel Layer: 441 RGB 3-in-1 LEDs arranged 21×21
- Beam Layer: 49 × 3W Amber/Warm White LEDs arranged 7×7
- Individual Control: Each emitter is individually pixel controllable
- Video / FX: Video, strobe, chasing, character, flowing and wash effects
Need DMX profiles, pixel mapping files or technical documentation for your control system? Contact our engineering team.
Visit Download CenterDimensions & Physical Structure

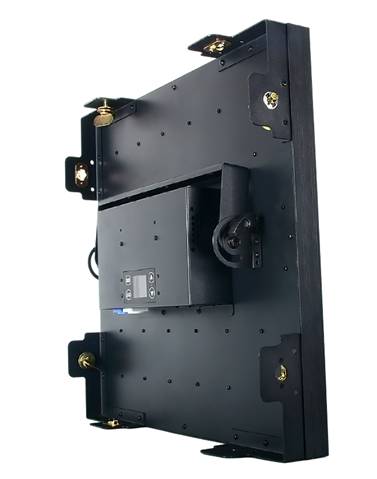

Modular 500 × 503 mm panel format with a 96 mm depth, designed for flexible hanging, ground-stacking and multi-panel background-wall configurations.
Product Size: 500 × 503 × 96 mm | Net Weight: 9.0 kg | Gross Weight: 11.0 kg
The modular frame uses a creative lock system for seamless connection in all directions.
Touring & Stage Applications
Engineered to excel across diverse professional entertainment environments.
Live Streaming Studios
Creates a premium camera background with programmable starry glow and RGB pixel effects.
Stage Backdrops & Events
Combines warm white star points with RGB pixel animation to create depth-rich stage and event backgrounds.
DJ Booths & Entertainment Venues
Adds programmable visual atmosphere to DJ booths, clubs, KTV rooms and other entertainment spaces.
Why Choose STARLIGHT MATRIX 7X7 for Creative Stage Backgrounds?
STARLIGHT MATRIX 7X7 combines lighting and video capabilities in a modular LED matrix format, providing a flexible alternative when a project needs both visual content and lighting effects.
LIGHTING + VIDEO IN ONE PANEL
Use the RGB pixel layer for high-brightness visual content and pixel effects while the 49 Amber/Warm White beam sources add powerful beam and strobe effects.
MODULAR BACKGROUND WALL
The creative lock system allows multiple panels to interlock in all directions for background walls and stage-panel configurations.
Rental & Installation Value
STARLIGHT MATRIX 7X7 combines multiple visual functions in one modular panel, helping rental companies and installers create flexible stage, TV, studio and entertainment packages.
Warm White + RGB Pixel
Combines warm white star beams and 441 RGB pixels in one creative lighting panel.
Studio + Stage + Entertainment
One product can serve live streaming, DJ, KTV, stage and event lighting applications.
Premium Visual Layer
Adds a distinctive visual layer to premium event and entertainment packages.
Technical Resources
Access official documentation, software files, and engineering drawings via our central portal.
Download Center
Access full library of Datasheets, GDTF, IES, CAD, and User Manuals.
Visit Download CenterNeed CAD / Console Profile?
Directly connect with our technical engineers for customized fixture support.
Contact EngineerBuild a Creative Pixel Lighting System
Pair STARLIGHT MATRIX 7X7 with YUE YUAN's pixel, strobe and wash fixtures to build complete creative entertainment lighting packages.
Recommended Creative Lighting Package
Build a modular visual package by combining STARLIGHT MATRIX 7X7 with complementary pixel, wash and blinder fixtures.
Stage / Studio Pixel FX Package
A flexible package concept for stage backdrops, TV applications, live streaming studios and entertainment venues.
- ✓ STARLIGHT MATRIX 7X7 — Dual-layer LED matrix with RGB video, pixel FX and Amber/Warm White beams
- ✓ PIXEL STRIKE 24 — Complementary indoor pixel strobe effects
- ✓ PULSE PANEL PRO — Additional RGB / White / Amber pixel lighting layer
- ✓ AURORA CYC 350 IP — Stage wash and cyclorama lighting
Frequently Asked Questions
What is STARLIGHT MATRIX 7X7?
STARLIGHT MATRIX 7X7 is a dual-layer LED matrix panel integrating lighting and video capabilities. It combines 441 RGB 3-in-1 LEDs arranged in a 21×21 pixel matrix with 49 × 3W Amber/Warm White beam LEDs arranged in a 7×7 layer.
Can the emitters be controlled individually?
Yes. Each emitter is individually pixel controllable, enabling pixel mapping and video content on either one or both source groups.
What DMX channel modes are available?
The available DMX channel modes are 4 / 19 / 68 / 196C / 460C / 1372 channels.
What control modes are supported?
Control modes include DMX512, Master/Slave, Auto-run and Sound, with RDM support.
How can multiple panels be installed?
The modular frame uses a creative lock system for seamless connection in all directions and supports hanging or ground stacking for background walls and stage panels.
