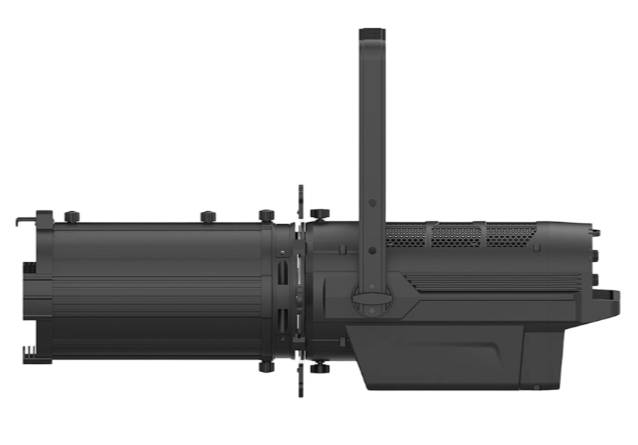

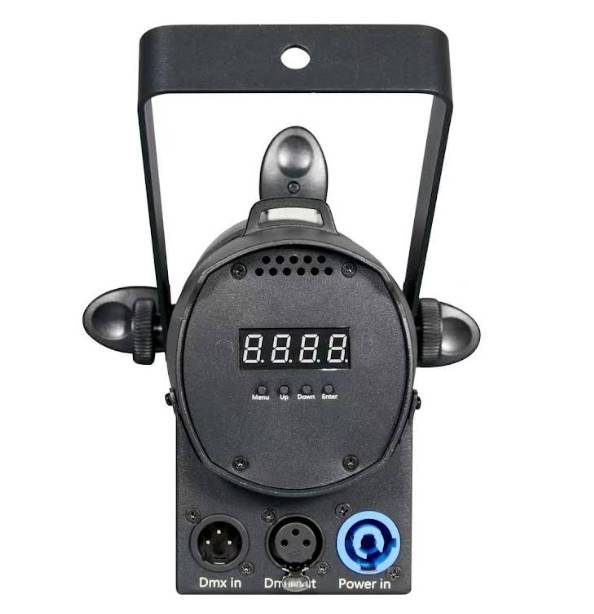

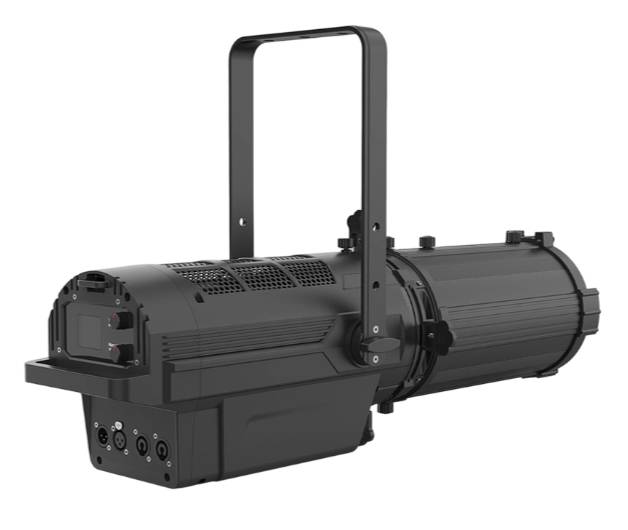

200W LED Zoom Profile Spot Light 3200K/5600K
A versatile LED profile spotlight with zoom optics and selectable 3200K or 5600K white output for precise beam control.
The 200W LED Zoom Profile Spot Light is engineered for theatre stages, broadcast studios, live performance venues and professional architectural lighting. The zoom functionality allows flexible beam adjustment, while the high CRI selectable white light ensures natural rendering for performers and sets.
- 200W white LED engine with selectable 3200K / 5600K
- Precision zoom optics for beam control
- High CRI output for accurate color rendering
- Manual focus and framing adjustment options
- DMX-512 control with multiple channel modes
- Quiet cooling system for studio and theatre use
- Robust build for rental and touring applications
For an accurate recommendation, include your venue, quantity, preferred color temperature and beam-angle requirements.
SPECIFICATIONS
LIGHT SOURCE & OPTICS
- LED Source: 200W adjustable-CCT high-CRI COB LED
- Selectable Color Temperature: 3200K / 5600K
- CRI: Ra ≥ 95
- Zoom Angle: 17°–50° (manual adjustment)
- Beam Control: Manual focus
- Framing: Built-in four framing blades
CONTROL
- Control Modes: DMX wired/wireless signal optional; manual mode
- DMX Channel Mode: 3CH
- Display: TFT color screen + two knobs
ELECTRICAL
- Voltage: AC100–240V, 50/60Hz
- Rated Power: 200W
PHYSICAL
- Housing: Aluminum alloy
- Cooling: Copper tube heat sink + intelligent silent fan
- Net Weight: 10.55 kg
- Shell Color: White housing (as specified); confirm black option when ordering
- Noise Level: ≤30 dB at 1 meter
- Lifetime: Up to 50,000 hours (manufacturer specification)
- Fixture Dimensions: 765 × 260 × 260 mm
- Packaging Dimensions: 830 × 310 × 295 mm
- Gross Weight: 12.5 kg
- Accessories: Power cable, signal cable; pattern holder optional
- IP Rating: IP20 (indoor)
APPLICATIONS
- Theatre and drama stages
- Broadcast and TV studios
- Opera houses and performance venues
- Professional stage lighting installations
- Rental and touring production events
200W LED Zoom Profile Spot Light: Product Overview
The YUE YUAN Lighting 200W LED Zoom Profile Spot Light is specified for professional theatre, performance and studio lighting. Its listed 17°–50° variable zoom range supports adjustments from a tighter beam to a wider coverage area without changing the fixture position. Selectable 3200K / 5600K white output gives lighting teams two stated color-temperature options for different production looks.
Key selection points
- Beam: 17°–50° variable zoom; manual focus.
- White light: selectable 3200K / 5600K; CRI Ra ≥95.
- Control: DMX-512 with multiple selectable channel modes.
- Framing: optional 4-blade shutter set; confirm configuration when ordering.
Installation and project checks
- Confirm AC100–240V, 50/60Hz compatibility at the installation site.
- Allow for the specified net fixture weight of 10.55 kg in rigging and mounting plans.
- Use indoors only based on the listed IP20 rating.
- For camera-facing work, verify flicker performance with the intended camera settings before production.
For B2B quotations: specify quantity, destination, project timeline, required color temperature, zoom needs, shutter accessories and DMX/console requirements. The sales team can then confirm configuration, price and lead time.
Frequently Asked Questions
What is the zoom angle of the 200W LED profile spotlight?
The listed variable zoom range is 17°–50°. Beam adjustment and focus are manual according to the current product specifications.
Does it offer 3200K and 5600K color temperatures?
Yes. The supplied specifications list selectable 3200K / 5600K white light. Confirm the required version in your quotation request.
Is it suitable for broadcast and camera use?
The product is listed for broadcast and TV studio applications. Ask for available flicker/PWM information and test at the intended frame rate, shutter angle and dimming level; do not assume flicker-free performance without verification.
Can it be installed outdoors?
The listed ingress protection is IP20 for indoor use. Do not install in exposed outdoor or wet locations unless a separately verified weather-rated version is supplied.
What information helps you quote the correct fixture?
Include quantity, destination country, delivery target, required color temperature, beam-angle requirements, optional framing shutters, DMX setup and any photometric or console-profile needs.
