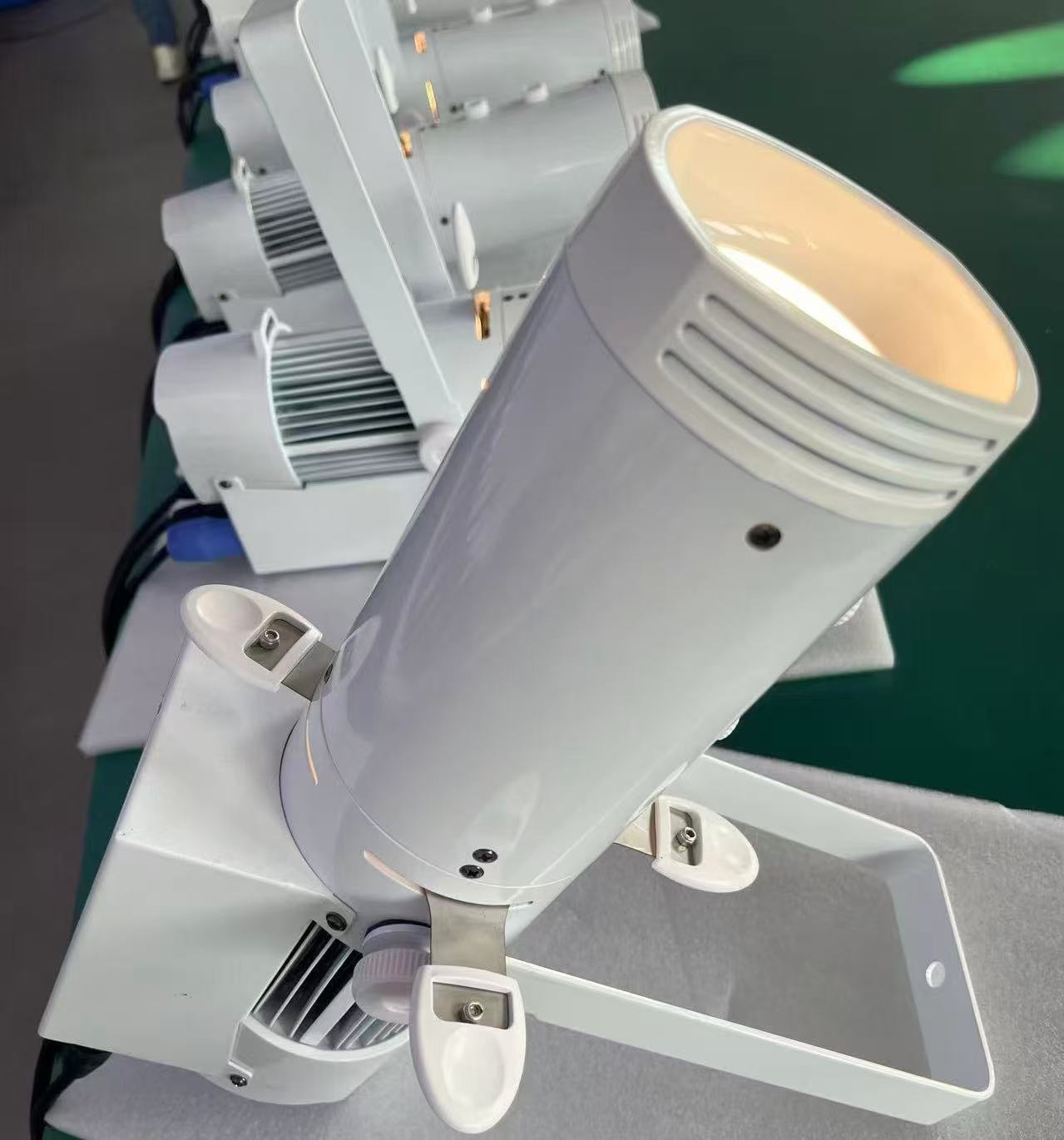

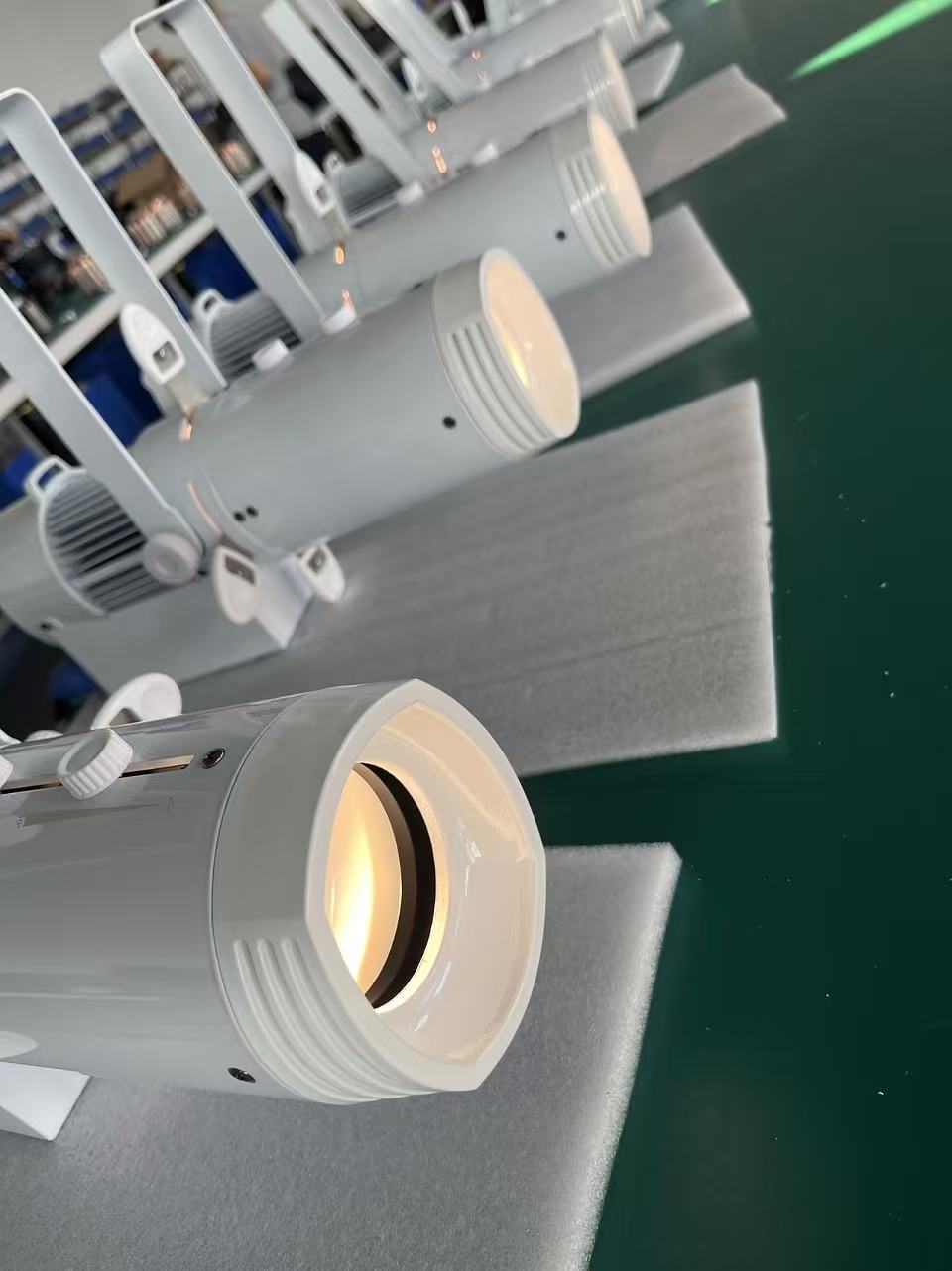

MINI 100W LED Zoom Profile Spotlight 3200K
A compact 100W COB LED profile spotlight with 3200K warm white output, 25°–50° zoom and high color fidelity for precise indoor lighting.
The MINI 100W LED Zoom Profile Spotlight is designed for indoor applications requiring controlled, well-defined illumination. It is suitable for facial lighting in theatres and TV studios, as well as museum displays, high-end exhibition halls and precise stage-area lighting. Fanless natural heat dissipation supports quiet environments. The housing is available in white, with black optional.
- 100W COB LED light source; 3200K warm white or Bicolor
- 15°–30° or 25°–50° variable zoom for adjustable beam coverage
- High color fidelity: CRI Ra ≥95, R9 ≥90, TLCI ≥95
- DMX-512 / RDM control with 2-channel operation
- Fanless natural heat dissipation for quiet indoor use
- White housing standard; black housing optional
- IP20 indoor fixture for theatre, TV studio, Weddings, Banquet, museum and exhibition lighting
For an accurate recommendation, include your venue, quantity, preferred color temperature and beam-angle requirements.
MINI 100W LED GOBO ZOOM PROFILE SPOTLIGHT SPECIFICATIONS
LIGHT SOURCE & OPTICS
- Light Source: 100W COB LED
- Color Temperature: 3200K warm white or Bicolor
- Color Rendering: CRI Ra ≥95, R9 ≥90, TLCI ≥95
- Zoom Range: 15°–30° or 25°–50° for optional
- Dimming: 0–100% linear dimming
- Strobe: Independent high-speed strobe listed in manual
- Light Source Lifespan: 50,000 hours (manufacturer manual rating)
CONTROL
- Control: DMX-512 / RDM and manual mode
- DMX Channels: 2CH
- CH1: General dimmer, 0–100% linear dimming
- CH2: Warm white, 0–100% dimming
ELECTRICAL
- Input Voltage: AC 100–240V, 50/60Hz
- Maximum Power Consumption: 100W
- Rated Power: 60W
PHYSICAL
- Housing: Aluminum alloy
- Cooling: Fanless natural heat dissipation, per manual
- Net Weight: 2.8kg
- Gross Weight: 3.5kg
- Body Color: White; black optional
- IP Rating: IP20 (indoor use)
- Ambient Temperature: -20°C to +40°C (manual listing)
APPLICATIONS
- Facial lighting in theatres and TV studios
- Museum display and gallery lighting
- Wedding setup and Banquest room
- High-end exhibition halls and showrooms
- Precise stage-area lighting
- Indoor filming, meeting rooms and performance spaces
MINI 100W LED Zoom Profile Spotlight: Product Overview
The MINI 100W LED Zoom Profile Spotlight is a compact indoor fixture for controlled facial lighting and precise area illumination. The supplied manual lists 3200K warm white, a 25°–50° zoom range, CRI Ra ≥95, R9 ≥90 and TLCI ≥95. DMX-512/RDM and manual control are listed, with a 2-channel DMX layout. Its fanless natural heat dissipation is intended to support quiet settings such as theatres, TV studios, museums and high-end exhibition halls.
Key selection points
- Beam: 15°–30° or 25°–50° variable zoom for flexible coverage.
- Color: 3200K warm white; CRI Ra ≥95, R9 ≥90, TLCI ≥95.
- Control: DMX-512/RDM, manual mode and 2-channel operation.
- Housing: White standard, black optional; IP20 indoor use.
Project checks before ordering
- Confirm the beam angle and distance required for facial or display lighting.
- For camera-facing work, test the actual fixture with the intended camera settings.
- Manual lists maximum consumption 100W and rated power 60W; confirm this discrepancy with sales before ordering.
- For suspended installation, use suitable rigging and a secondary safety cable as described in the manual.
For B2B quotations: share quantity, destination country, delivery target, housing color, mounting arrangement, DMX setup and intended application so the team can confirm the appropriate configuration.
Frequently Asked Questions
What is the zoom range?
The supplied manual lists a variable zoom range of 15°–30° or 25°–50°.
What color temperature does it provide?
The manual lists 3200K warm white or Bicolor.
Is it suitable for TV studios and facial lighting?
The manual describes indoor film/TV, studio, meeting room and stage applications. It can be considered for TV studio and theatre facial lighting. For camera use, test with the intended frame rate, shutter and dimming settings; no flicker-free guarantee is stated in the supplied manual.
Can I choose a black or white housing?
The white as the body color and black as optional. Please specify your preferred color in the inquiry.
What are the power and control specifications?
The manual lists AC 100–240V, 50/60Hz, DMX-512/RDM and 2-channel operation. It also lists maximum power consumption as 100W and rated power as 60W; please confirm the intended rating with sales before purchase.
Can it be used outdoors?
No outdoor rating is listed. The fixture is IP20 and intended for indoor use; keep it away from rain and moisture.
