What is the zoom range of this 60W mini LED gobo profile spotlight?

The product brief states 15°–38° manual zoom, but the parameter image states 15°–30°. Confirm the final range with the factory.

Which light-source versions are available?

The supplied parameter sheet lists 3200K/5600K and RGBW 4-in-1 options. Confirm the exact version when requesting a quotation.

Can this profile spotlight be used in TV studios?

It is listed for broadcast and TV studio applications. For camera use, request available flicker/PWM information and test the fixture at the intended frame rate, shutter angle and dimming level.

Is the fixture suitable for outdoor use?

The listed rating is IP20 for indoor use. Do not specify it for exposed outdoor or wet locations unless a separately verified suitable version is supplied.

What should I include in a quotation request?

Share the required quantity, destination country, target delivery date, preferred color temperature, beam-angle needs, control setup and any photometric or console-profile requirements.

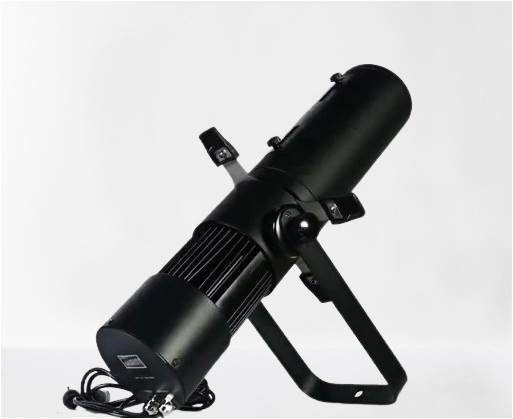

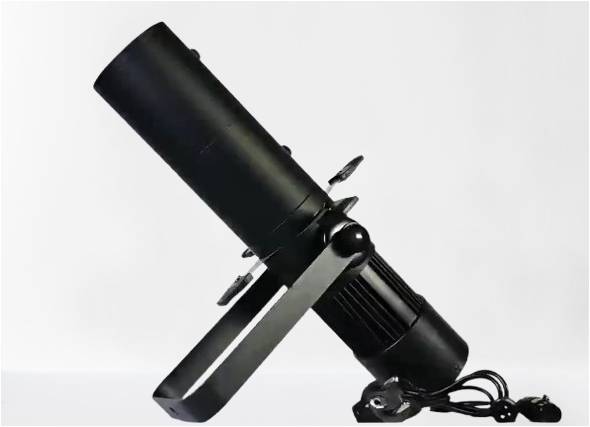

60W Mini LED Gobo Profile Spotlight RGBW 4-in-1

A compact 60W mini LED gobo profile spotlight with manual zoom optics, crisp pattern projection and vivid, clean color output. Available light-source options listed in the supplied specification include 3200K/5600K and RGBW 4-in-1; confirm the exact configuration when ordering.

The 60W Mini LED Gobo Profile Spotlight is engineered for theatre stages, broadcast studios, live performance venues and professional architectural lighting. The zoom functionality allows flexible beam adjustment, while the high CRI selectable white light ensures natural rendering for performers and sets.

60W COB LED source; 3200K / 5600K or RGBW 4-in-1 or RGBW 4-in-1 versions listed
Manual zoom for flexible beam adjustment
Pattern projection with clear edges and vivid, pure colors
RGBW 4-in-1 option; single-color and two-color channel configurations are listed
High CRI output for accurate color rendering
Manual focus and framing adjustment options
DMX-512 control with multiple channel modes
Quiet cooling system for studio and theatre use
Robust build for rental and touring applications

Request Project Quote Email Sales Engineering

For an accurate recommendation, include your venue, quantity, preferred color temperature and beam-angle requirements.

SPECIFICATIONS

LIGHT SOURCE & OPTICS

LED Source: 60W COB LED; 3200K / 5600K or RGBW 4-in-1 or RGBW 4-in-1 options listed
Light Color: 3200K / 5600K or RGBW 4-in-1 or RGBW 4-in-1, depending on version
CRI: Ra ≥ 95
Beam Angle: manual zoom; product description states 15°–30° (confirm against final specification)
Beam Control: Manual focus
Framing: Optional 4-blade shutter set

CONTROL

Control Protocol: DMX-512
DMX Channel Modes: 1 color: 2 CH, 2 colors: 3CH, RGBW: 5CH
Display: LCD menu with buttons

ELECTRICAL

Voltage: AC100–240V, 50/60Hz
Maximum Power: 60W
Optics: Ultra HD K9 optical system
Dimming: 0–100% linear dimming
Control: DMX512; channel modes with single color 2CH, two-color 3CH, RGBW 5CH
Operating temperature: -30°C to 50°C

PHYSICAL

Housing: Die-cast aluminum
Cooling: Low-noise intelligent fan
Shell Color: Black
Display: digital screen with four buttons
Cooling: aluminum profile heat sink
Protection rating: IP20, indoor use
Product size: 320 × 93 × 93 mm
Net Weight: 4 kg
Packaging size: 540 × 260 × 200 mm

APPLICATIONS

Theatre and drama stages
Broadcast and TV studios
Opera houses and performance venues
Professional stage lighting installations
Rental and touring production events

60W Mini LED Gobo Profile Spotlight: Product Overview

The YUE YUAN Lighting 60W Mini LED Gobo Profile Spotlight is specified for professional theatre, performance and studio lighting. Its listed 15°–30° manual zoom (confirm final beam-angle range) range supports adjustments from a tighter beam to a wider coverage area without changing the fixture position. Selectable 3200K / 5600K or RGBW 4-in-1 white output gives lighting teams two stated color-temperature options for different production looks.

Key selection points

Beam: 15°–30° manual zoom (confirm final beam-angle range); manual focus.
Light source: 3200K/5600K or RGBW 4-in-1 option. The supplied image lists CRI Ra ≥95.
Control: DMX-512 with multiple selectable channel modes.
Framing: optional 4-blade shutter set; confirm configuration when ordering.

Installation and project checks

Confirm AC100–240V, 50/60Hz compatibility at the installation site.
Allow for the listed fixture weight of approximately 9.8kg in rigging and mounting plans.
Use indoors only based on the listed IP20 rating.
For camera-facing work, verify flicker performance with the intended camera settings before production.

For B2B quotations: specify quantity, destination, project timeline, required color temperature, zoom needs, shutter accessories and DMX/console requirements. The sales team can then confirm configuration, price and lead time.

Frequently Asked Questions

What is the zoom angle of the 60W LED profile spotlight?

The product brief states 15°–30° manual zoom, while the parameter image states 15°–30°. Please confirm the final beam-angle range with the factory before order confirmation.

Does it offer 3200K and 5600K color temperatures?

Yes. it is selectable 3200K / 5600K or RGBW 4-in-1 white light. Confirm the required version in your quotation request.

Is it suitable for broadcast and camera use?

The product ideal for broadcast and TV studio applications. Ask for available flicker/PWM information and test at the intended frame rate, shutter angle and dimming level; do not assume flicker-free performance without verification.

Can it be installed outdoors?

No, it is IP20 for indoor use. Do not install in exposed outdoor or wet locations unless a separately verified weather-rated version is supplied.

What information helps you quote the correct fixture?

Include quantity, destination country, delivery target, required color temperature, beam-angle requirements, optional framing shutters, DMX setup and any photometric or console-profile needs.
