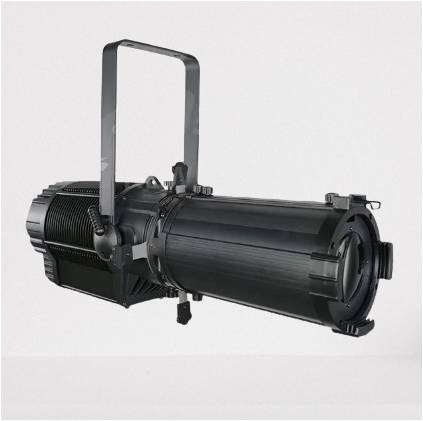

IP65 Waterproof 200W/300W LED Zoom Profile Spotlight
A versatile LED profile spotlight with zoom optics and selectable 3200K or 5600K or RGBW 4-IN-1 or RGBWY 5-IN-1 output for precise beam control.
The 200W LED Zoom Profile Spot Light is engineered for theatre stages, broadcast studios, live performance venues and professional architectural lighting. The zoom functionality allows flexible beam adjustment, while the high CRI selectable white light ensures natural rendering for performers and sets.
- 200W LED engine with selectable 3200K/5600K/RGBW/RGBWY
- Precision zoom optics for beam control
- High CRI output for accurate color rendering
- Manual focus and framing adjustment options
- DMX-512 control with multiple channel modes
- Quiet cooling system for studio and theatre use
- Robust build for rental and touring applications
For an accurate recommendation, include your venue, quantity, preferred color temperature and beam-angle requirements.
IP65 WATERPROOF PROFILE SPOTLIGHT FOR STAGE & EVENT LIGHTING
The IP65 200W/300W LED Zoom Profile Spotlight combines a narrow-to-wide 15°–40° beam range with high-CRI output and selectable color configurations. It can be considered for outdoor-capable stages, live events, touring productions and other installations where a defined profile beam and environmental protection are required. Always verify the installation position, cable connections and sealing requirements against the product manual.
HIGH COLOR FIDELITY
CRI Ra≥95 supports accurate reproduction of natural colors on performers, costumes, scenery and display objects. Select 3200K/5600K tunable white or the available RGBW/RGBWY configuration according to the project requirement.
CONTROLLED, UNIFORM BEAM
The Ultra HD K9 optical system and 15°–40° zoom range support flexible beam shaping. The supplied specification describes the light spot as uniform and clear, without yellow or blue edge color cast.
FANLESS PASSIVE COOLING
A fanless passive cooling design and die-cast aluminum housing are specified. This avoids fan-generated noise and is useful for installations sensitive to acoustic noise; maintain the required ventilation clearance around the fixture.
IP65 PROTECTION
The product sheet lists IP65 protection and an operating temperature range of -30°C to 50°C. Outdoor suitability still depends on correct installation, cable glands, connectors, mounting and maintenance in accordance with the manufacturer's instructions.
SPECIFICATIONS
LIGHT SOURCE & OPTICS
- LED Power Options: 200W / 300W
- LED Source: LED 300W as stated in the supplied sheet; confirm source configuration for each model
- Color Options: 3200K/5600K tunable white, RGBW 4-in-1, RGBWY 5-in-1
- CRI: Ra ≥ 95
- Zoom Angle: 15°–40° manual zoom
- Optical System: Ultra HD K9 optical system
- Beam Quality: Uniform, clear spot; specification states no yellow or blue edge appearance
CONTROL & EFFECTS
- Control Modes: DMX512, self-walk mode, master control
- DMX Channels: Single color 2CH; two colors 4CH; RGBW 6CH; RGBWY 7CH
- Dimming: 0–100% linear dimming
- Strobe: 1–25 flashes per second
- Zoom: Manual adjustment

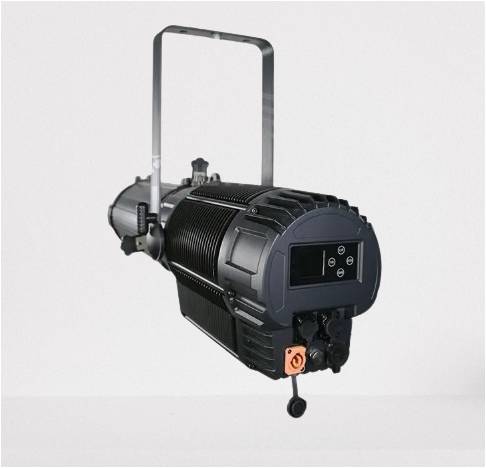

- Display: LCD color screen + four buttons
ELECTRICAL
- Input Voltage: AC110–240V, 50/60Hz
- Maximum Power: 220W / 320W (available for the 200W / 300W versions respectively)
PHYSICAL & ENVIRONMENTAL
- Housing: Die-cast aluminum
- Cooling: Fanless passive cooling design
- Protection Rating: IP65
- Operating Temperature: -30°C to 50°C
- Weight: 20 kg
- Fixture Dimensions: 660 × 370 × 350 mm
- Packaging Dimensions: 752 × 325 × 325 mm
- Light Source Lifetime: More than 50,000 hours
APPLICATIONS
- Outdoor stages and live events
- Stage area lighting and beam shaping
- Event production and rental inventory
- Venues needing adjustable profile-style projection
Configuration note: the source sheet lists a 200W/300W family, LED source “LED 300W,” and maximum power 220W/320W. Please confirm the exact source rating and weight for each SKU before publication.
RECOMMENDED APPLICATIONS
- Outdoor stages and live performance events requiring IP65-rated lighting equipment
- Touring productions and temporary event setups
- Architectural or event installations needing a clearly defined profile beam
- Color-critical stage lighting using high-CRI white light or RGBW/RGBWY color options
Configuration note: 200W/300W, 3200K/5600K, RGBW and RGBWY are listed options, not necessarily simultaneous features in one unit. Confirm the exact SKU, source configuration, power draw and weight with the sales team before ordering.
Frequently Asked Questions
Is this 200W/300W LED profile spotlight waterproof?
The supplied specification sheet lists an IP65 protection rating. Correct installation, cable entry and sealing are important; follow the product manual and installation instructions for the actual fixture.
What is the zoom range?
It is a 15°–40° zoom range and describes the zoom system as manual. If motorized/electric zoom is required, confirm that option with the supplier before ordering.
Which light-source and color options are available?
It is 3200K/5600K tunable white, RGBW 4-in-1 and RGBWY 5-in-1 options. Confirm the exact color configuration for the selected 200W or 300W version.
What control modes and DMX channels are listed?
DMX512, self-walk and master control are listed. Channel modes are single color 2CH, two colors 4CH and RGBW 6CH.
Does it use a fan?
It is a fanless passive cooling design with a die-cast aluminum housing.
What information should I include in an inquiry?
Please include the required wattage (200W or 300W), color configuration, quantity, destination, control requirements and installation environment so the team can confirm the exact model and quotation.
