AURORA ORBIT 9 | Triple-Layer Pixel Matrix Fixture
RGBW Wash • RGB Ring Pixel • CW/Amber Strobe
Professional Indoor Stage & Event Fixture
AURORA ORBIT 9 combines three independent lighting layers into one powerful pixel matrix fixture: 9 × 40W RGBW LEDs, 450 RGB ring pixels, and CW/Amber strobe lines.
Designed for concerts, touring productions, festivals, clubs, churches, broadcast, and rental companies, ORBIT 9 delivers strong standalone impact while allowing multiple fixtures to become a larger visual matrix.
The result is more than a conventional blinder or wash fixture: a scalable visual system for pixel animations, stage backdrops, DJ booth effects, audience-impact moments, and synchronized matrix looks.
Key Features
- ✓ Triple-Layer Pixel Architecture — RGBW Wash + RGB Ring Pixel + CW/Amber Strobe
- ✓ 9 × 40W RGBW LEDs for powerful wash and blinder output
- ✓ 450 RGB Ring Pixels — 50 × 0.2W RGB LEDs around each main LED
- ✓ CW / Amber Strobe Lines for high-impact white and warm strobe effects
- ✓ Multi-Fixture Matrix Expansion for pixel walls, stage backdrops and DJ visuals
- ✓ DMX512 / Master-Slave / Auto / Sound Active control modes
Product Overview Video
Technical Specification
LIGHT SOURCE & PIXEL ARCHITECTURE
- Main Light Source: 9 × 40W RGBW LEDs
- RGB Ring Pixels: 450 × 0.2W RGB LEDs
- Ring Layout: 50 RGB pixels surrounding each 40W RGBW LED
- Strobe Source: CW / Amber dual-color strobe lines
- Strobe Frequency: 0–25Hz
PIXEL & EFFECTS
- RGBW Cells: 9 independently addressable main cells
- Ring Pixel System: Dynamic RGB pixel animations and chases
- Strobe: Cool White / Amber layered effects
- Dimming: 0–100% smooth dimming
CONTROL
- Control Modes: DMX512, Master/Slave, Auto, Sound Active
- Pixel Control: Independent control architecture for layered effects
ELECTRICAL
- Input Voltage: AC100–240V, 50/60Hz
- Power Consumption: 470W
- Protection: Intelligent temperature protection
PHYSICAL & CONSTRUCTION
- Housing: Professional touring-grade metal housing, Black
- Dimensions: 630 × 696 × 158 mm
- Cooling: Forced-air cooling with intelligent temperature protection

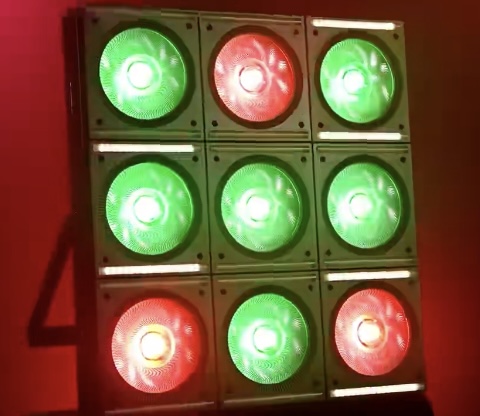

Triple-Layer Pixel Architecture
Three Independent Lighting Layers
- Layer 1 — RGBW Wash: 9 × 40W RGBW LEDs for powerful color wash and audience-impact looks.
- Layer 2 — RGB Ring Pixel: 450 × 0.2W RGB LEDs for ring animations, chases and matrix graphics.
- Layer 3 — CW/Amber Strobe: dual-color strobe lines above and below each RGBW cell.
Need the ORBIT 9 DMX profile, CAD, GDTF, or project support for your console and visualizer workflow?
Visit Download CenterDimensions & Physical Structure

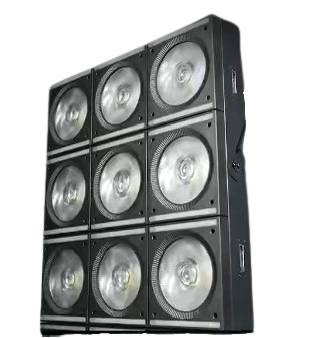

A large-format 3 × 3 RGBW pixel fixture designed for scalable indoor stage, touring, and rental deployments.
Dimensions: 630 × 696 × 158 mm
Detailed 2D/3D CAD dimensional mechanical drawings available in our resource center.
Professional Applications
Designed for productions where lighting becomes part of the visual architecture.
Concerts & Touring
Use ORBIT 9 as a high-impact RGBW fixture or combine multiple units for synchronized pixel walls and animated stage backdrops.
Festival & Event Production
Create large visual fields for festivals, DJ stages, corporate shows, and high-energy event environments.
Rental Companies
A multi-function fixture that expands the creative roles of a rental inventory without requiring separate wash, pixel-effect, and strobe fixtures.
Nightclub, Church & Broadcast
Layered RGBW, ring pixels, and CW/Amber strobe effects bring depth and programmable visual movement to fixed and temporary productions.
Why AURORA ORBIT 9 Is Different
A conventional blinder creates impact. A pixel matrix fixture creates an entire visual system.
AURORA ORBIT 9 is built around three independent layers: RGBW wash, RGB ring pixel effects, and CW/Amber strobe. This gives lighting designers more creative roles from one fixture and makes multi-unit deployment a natural part of the design.
Rental Fleet Value
Evaluate ORBIT 9 as a multi-function fixture for creative inventory and scalable visual systems.
One Fixture
Combines RGBW wash, RGB ring pixel effects, and CW/Amber strobe in one housing.

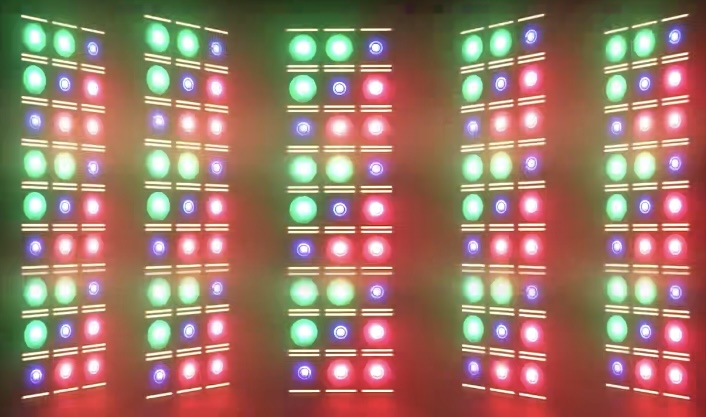

Single to Matrix
Deploy individually or link multiple fixtures to build large pixel walls and stage visuals.
More Creative Roles
A multi-function fixture can serve more production concepts without adding separate fixture categories.
Technical Resources
Access official documentation, software files, and engineering drawings via our central portal.
Download Center
Access full library of Datasheets, GDTF, IES, CAD, and User Manuals.
Visit Download CenterNeed CAD / Console Profile?
Directly connect with our technical engineers for customized fixture support.
Contact EngineerBuild Your Pixel Matrix Lighting System
Pair AURORA ORBIT 9 with YUE YUAN moving heads, pixel bars, blinders, and cyc fixtures to build complete concert and rental lighting packages.
Recommended Touring Lighting Packages
Pre-configured bundles designed for rental inventory expansion and festival and touring staging.
Pixel Matrix Touring Starter Package
A scalable touring package combining pixel matrix visuals, hybrid moving heads, audience-impact lighting, and stage wash.
- ✓ 8 × AURORA ORBIT 9 (Triple-Layer Pixel Matrix Fixture)
- ✓ 12 × STORM 300BSW IP (Beam / Spot / Wash Moving Heads)
- ✓ 8 × CLUSTER B2 FC 600IP (RGBA+WW Audience Blinder)
- ✓ 4 × AURORA CYC 350 IP (IP65 Stage Wash & Cyclorama)
Frequently Asked Questions
What is AURORA ORBIT 9?
AURORA ORBIT 9 is a Triple-Layer Pixel Matrix Fixture combining 9 × 40W RGBW LEDs, 450 RGB ring pixels, and CW/Amber strobe lines.
Can multiple ORBIT 9 fixtures be used as a pixel wall?
Yes. Multiple units can be arranged together for large pixel matrix displays, stage backdrops, DJ booth visuals, and indoor event and stage lighting walls.
What control modes are supported?
AURORA ORBIT 9 supports DMX512, Master/Slave, Auto, and Sound Active modes.
